5218132F
ActiveDIALIGHT

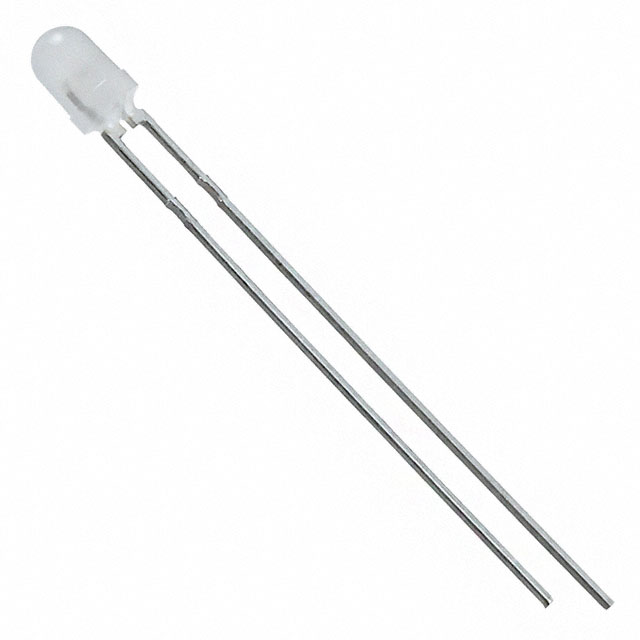

LED BLUE DIFFUSED 3MM T/H
Deep-Dive with AI
Search across all available documentation for this part.
5218132F
ActiveDIALIGHT
LED BLUE DIFFUSED 3MM T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5218132F |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 2 mA |
| Height (Max) [Max] [z] | 5.86 mm |
| Lens Color | White |
| Lens Size [diameter] | 3 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 16 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | 3 mm |
| Viewing Angle | 100 ° |
| Voltage - Forward (Vf) (Typ) | 2.7 V |
| Wavelength - Dominant | 470 nm |
| Wavelength - Peak | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.96 | |
| 10 | $ 1.24 | |||
| 400 | $ 0.92 | |||
| 1200 | $ 0.70 | |||
| 5200 | $ 0.65 | |||
| 10000 | $ 0.63 | |||
Description
General part information
5218132 Series
Blue 470nm LED Indication - Discrete 2.7V Radial
Documents
Technical documentation and resources
No documents available
