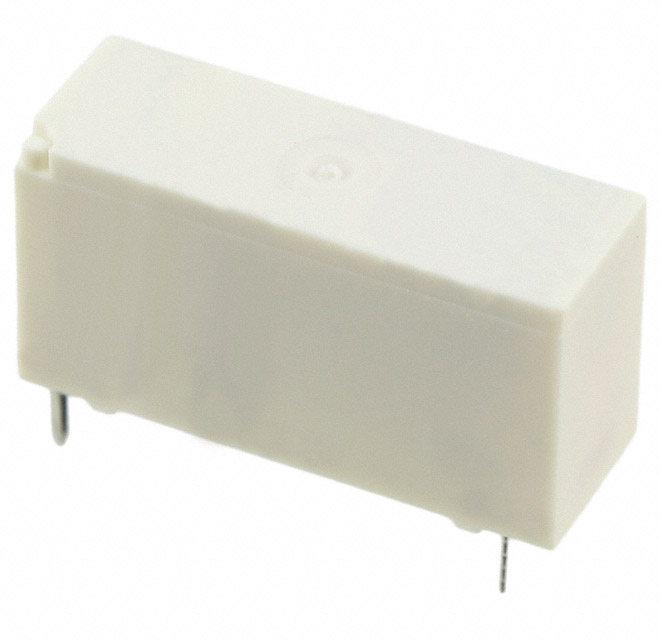

V23061B1007A601

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 8A 24V

Deep-Dive with AI

Search across all available documentation for this part.

V23061B1007A601

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 8A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V23061B1007A601

Approval Agency	cURus, VDE
Coil Current	10.6 mA
Coil Resistance	2.27 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	8 A
Load - Max Switching	3200 VA
Mounting Type	Through Hole
Must Operate Voltage	16.3 VDC
Must Release Voltage	2.4 VDC
Operate Time	10 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

1393223 Series

Part	Release Time	Approval Agency	Coil Resistance	Load - Max Switching	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Contact Form	Contact Rating (Current)	Seal Rating	Must Operate Voltage	Switching Voltage [Max]	Coil Voltage	Contact Material	Relay Type	Mounting Type	Termination Style	Coil Current	Coil Type
TE Connectivity Potter & Brumfield Relays 5-1393223-0	5 ms	cURus VDE	2.27 kOhms	3200 VA	2.4 VDC	85 °C	-40 °C	10 ms	SPDT (1 Form C)	8 A	Sealed - Flux Protection	16.3 VDC	400 VAC	24 VDC	Silver Cadmium Oxide (AgCdO)	General Purpose	Through Hole	PC Pin	10.6 mA	Non Latching
TE Connectivity Potter & Brumfield Relays V23061B1010A501	5 ms	cURus VDE	15.27 kOhms	3200 VA	6 VDC	85 °C	-40 °C	10 ms	SPDT (1 Form C)	8 A	Sealed - Fully	40.8 VDC	400 VAC	60 VDC	Silver Nickel (AgNi)	General Purpose	Through Hole	PC Pin	4 mA	Non Latching
TE Connectivity Potter & Brumfield Relays V23061B1009A501	5 ms	cURus VDE	8.79 kOhms	3200 VA	4.8 VDC	85 °C	-40 °C	10 ms	SPDT (1 Form C)	8 A	Sealed - Fully		400 VAC	48 VDC	Silver Nickel (AgNi)	General Purpose	Through Hole	PC Pin	5.5 mA	Non Latching
TE Connectivity Potter & Brumfield Relays V23061B1007A301	5 ms	cURus VDE	2.27 kOhms	3200 VA	2.4 VDC	85 °C	-40 °C	10 ms	SPDT (1 Form C)	8 A	Sealed - Fully	16.3 VDC	400 VAC	24 VDC	Silver Tin Oxide (AgSnO)	General Purpose	Through Hole	PC Pin	10.6 mA	Non Latching
TE Connectivity Potter & Brumfield Relays 1393223-7	5 ms	cURus VDE	652 Ohms	3200 VA	1.2 VDC	85 °C	-40 °C	10 ms	SPDT (1 Form C)	8 A	Sealed - Fully	8.2 VDC	400 VAC	12 VDC	Silver Nickel (AgNi)	General Purpose	Through Hole	PC Pin	18.4 mA	Non Latching
TE Connectivity Potter & Brumfield Relays V23061B1007A601	5 ms	cURus VDE	2.27 kOhms	3200 VA	2.4 VDC	85 °C	-40 °C	10 ms	SPDT (1 Form C)	8 A	Sealed - Fully	16.3 VDC	400 VAC	24 VDC	Silver Cadmium Oxide (AgCdO)	General Purpose	Through Hole	PC Pin	10.6 mA	Non Latching
TE Connectivity Potter & Brumfield Relays 1-1393223-5	5 ms	cURus VDE	1.45 kOhms	3200 VA	1.8 VDC	85 °C	-40 °C	10 ms	SPDT (1 Form C)	8 A	Sealed - Fully	12.2 VDC	400 VAC	18 VDC	Silver Cadmium Oxide (AgCdO)	General Purpose	Through Hole	PC Pin	12.4 mA	Non Latching
TE Connectivity Potter & Brumfield Relays V23061B1007A501	5 ms	cURus VDE	2.27 kOhms	3200 VA	2.4 VDC	85 °C	-40 °C	10 ms	SPDT (1 Form C)	8 A	Sealed - Fully	16.3 VDC	400 VAC	24 VDC	Silver Nickel (AgNi)	General Purpose	Through Hole	PC Pin	10.6 mA	Non Latching

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1393223 Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
