JD-90-2-7
ActiveKilo International

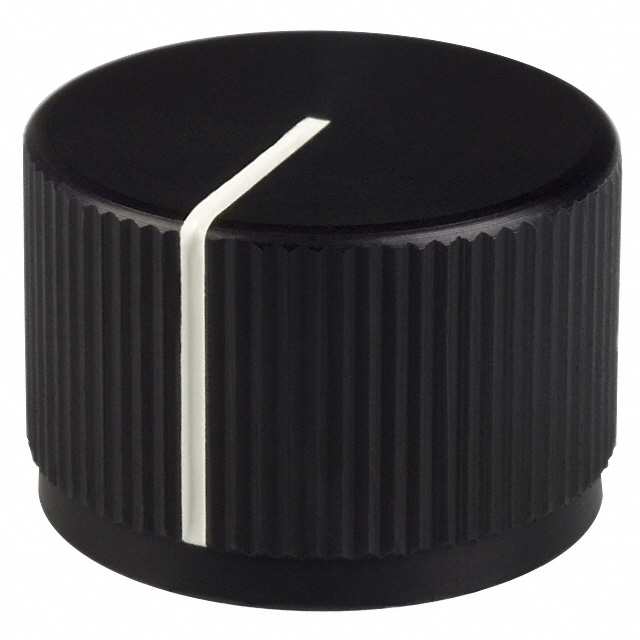

CONTROL KNOB, KNURL/ROUND BLACK LINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JD-90-2-7
ActiveKilo International
CONTROL KNOB, KNURL/ROUND BLACK LINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JD-90-2-7 |
|---|---|
| Color | Black Gloss |
| Diameter [diameter] | 23.5 mm |
| Diameter [diameter] | 0.925 in |
| Features | 6-32 Set Screw (2) |
| Height [z] | 15.88 mm |
| Height [z] | 0.625 in |
| Indicator [custom] | Line on Side |
| Indicator [custom] | Line on Top |
| Material | Metal |
| Style | Cylindrical |
| Type | Straight, Knurled |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.75 | |
| 5 | $ 11.04 | |||
| 10 | $ 10.58 | |||
| 25 | $ 10.24 | |||
| 50 | $ 10.10 | |||
| 100 | $ 10.02 | |||
| 250 | $ 9.96 | |||
| 500 | $ 9.93 | |||
| 1000 | $ 9.92 | |||
Description
General part information
JD-90 Series
Knurled, Straight Knob 0.236" (6.00mm) Shaft with Line on Top and Side Metal Black Gloss
