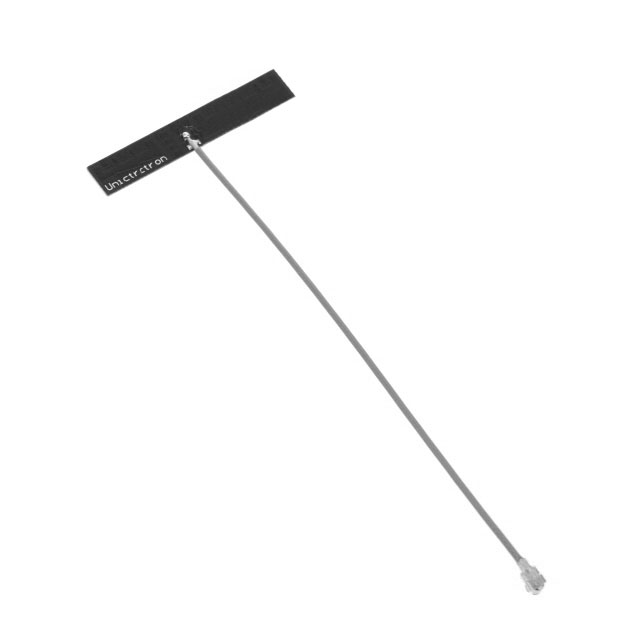

H2B1PD1A1C385L
ActiveUnictron Technologies Corporation
UNICTRON AA222 - DUAL BAND WIFI,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2B1PD1A1C385L
ActiveUnictron Technologies Corporation
UNICTRON AA222 - DUAL BAND WIFI,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2B1PD1A1C385L |
|---|---|
| Antenna Type | PCB Trace |
| Applications | 802.11g, 802.11b, 802.11n |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 2.45 GHz, 5.4 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 2.5 GHz, 5.9 GHz |
| Frequency Range [Min] | 2.4 GHz, 4.9 GHz |
| Gain | 4.4 dBi, 3 dBi |
| Height (Max) [Max] | 0.5 mm |
| Height (Max) [Max] | 0.02 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| RF Family/Standard | WiFi |
| Termination | IPEX MHF |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.19 | |
| 10 | $ 3.47 | |||
| 25 | $ 3.02 | |||
| 100 | $ 2.52 | |||
| 250 | $ 2.28 | |||
| 500 | $ 2.13 | |||
| 1000 | $ 2.01 | |||
| 2500 | $ 1.87 | |||
| 5000 | $ 1.81 | |||
Description
General part information
H2B1PD1 Series
RF ANTENNA 802.11b/g/n PCB Trace IPEX MHF Adhesive
