BU-P6713

Active

Mueller Electric Co

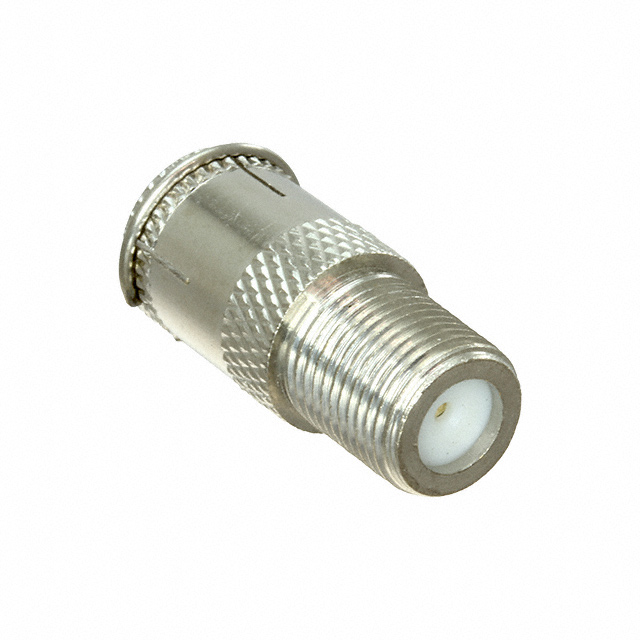

CONN TYPE F ADAPTER 0HZ TO 0.5GHZ 75OHM ST PL/RCP NICKEL

Search across all available documentation for this part.

Active

Mueller Electric Co

CONN TYPE F ADAPTER 0HZ TO 0.5GHZ 75OHM ST PL/RCP NICKEL

Technical Specifications

Parameters and characteristics for this part

Part	Adapter Series	Body Material	Adapter Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Center Contact Material	Style	Center Contact Plating	Body Finish	Convert From (Adapter End)	Center Gender	Dielectric Material	Conversion Type	Mounting Type	Convert To (Adapter End)	Frequency - Max [Max]
Mueller Electric Co BU-P6738	BNC to BNC Dual	Brass	Jack to Jack	Bayonet Lock	150 °C	-50 °C	75 Ohms	Beryllium Copper	T-Shape	Gold	Nickel	BNC Jack Female Socket	Female to Female	Polytetrafluoroethylene (PTFE)	Same Series	Free Hanging (In-Line)	BNC Jack Female Socket (2)
Mueller Electric Co BU-P6713	F to F	Brass	Plug to Jack	Snap-On Threaded			75 Ohms	Brass	Straight	Nickel	Nickel	F Plug Male Pin			Same Series	Free Hanging (In-Line)	F Jack Female Socket	500 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector F Plug, Male Pin To F Jack, Female Socket 75 Ohms
