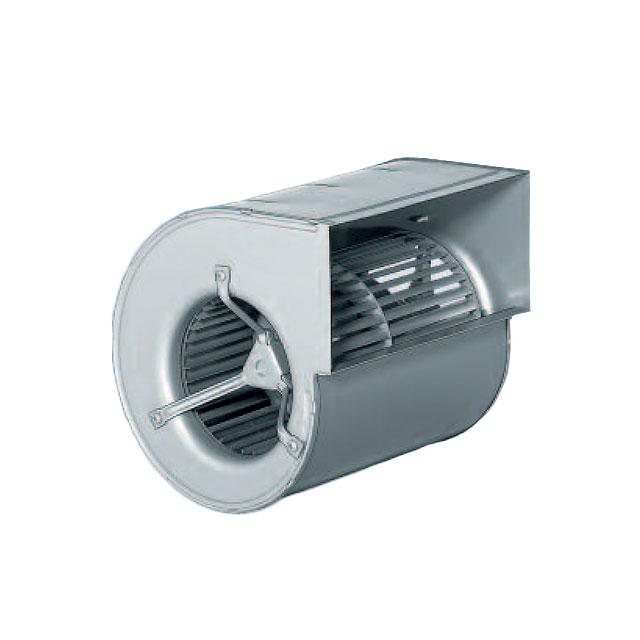

D1G133-AB39-52

Active

ebm-papst Inc.

FAN BLOWER CF 171X215.0MM 48VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER CF 171X215.0MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	D1G133-AB39-52

Approval Agency	CSA, UL, CCC, EAC
Bearing Type	Ball
Current Rating (Amps)	2.8 A
Fan Type	Blower, Centrifugal
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP42
Material - Blade	Steel
Material - Frame	Steel
Noise	64 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	105 W
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	171 mm
Size / Dimension [z]	180 mm
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	57 VDC
Voltage Range [Min]	36 VDC
Width [y]	215 mm

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Features	Voltage - Rated [custom]	Power (Watts)	Noise	Current Rating (Amps)	Bearing Type	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Width [y]	Material - Frame	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Ingress Protection	RPM
ebm-papst Inc. D1G133-AB39-52	36 VDC	57 VDC	Steel	Locked Rotor Protection PWM Control Speed Sensor (Tach)	48 VDC	105 W	64 dB(A)	2.8 A	Ball	Rectangular/Rounded	180 mm	171 mm	Blower Centrifugal	215 mm	Steel	4 Wire Leads	-25 °C	60 °C	CCC CSA EAC UL	IP42
ebm-papst Inc. D1G133-DC17-52	36 VDC	57 VDC	Steel	Locked Rotor Protection PWM Control Speed Sensor (Tach)	48 VDC	118 W	64 dB(A)	3 A	Ball	Rectangular/Rounded	213 mm	203 mm	Blower Centrifugal	232 mm	Steel	4 Wire Leads	-25 °C	60 °C	CSA EAC UL	IP42	1580 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Centrifugal 48VDC Rectangular/Rounded - 171mm L x 180mm H Ball 4 Wire Leads
