2702483

Active

Phoenix Contact

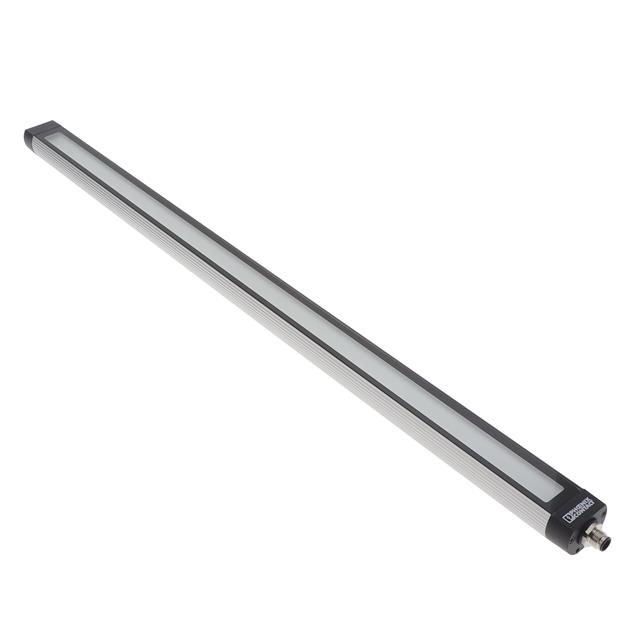

LED LIGHTING FIXTURES PLD M 260 W-85/ 95 715/D40

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2702483

Active

Phoenix Contact

LED LIGHTING FIXTURES PLD M 260 W-85/ 95 715/D40

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2702483

CCT (K)	5000 K
Color	Cool, White
Configuration	Rectangle
CRI (Color Rendering Index)	80
Features	IP67, With Connector
Height [z]	30 mm
Lens Type	Flat
Luminous Flux @ Current/Temperature	2280 lm
Size / Dimension [x]	715 mm
Size / Dimension [y]	40 mm
Type	LED Module
Viewing Angle	95 °, 85 °

27024 Series

Sensor Cables / Actuator Cables SAC-5P-M12MSL/ 3-280 FE

Part	Type	Current - IEC	Color	Termination Style	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Number of Levels	Positions Per Level	Header Orientation	Voltage - UL	Current - UL	Operating Temperature [Max]	Operating Temperature [Min]	Features	Insulation Height	Insulation Height	Number of Positions	Housing Material	Mounting Type	Pitch [x]	Pitch [x]	Voltage - IEC	Contact Material	Contact Mating Finish	For Use With/Related Products	Accessory Type	Configuration	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	Lens Type	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Height [z]	CCT (K)	Viewing Angle [custom]
Phoenix Contact 1837666	Header Male Pins Shrouded (4 Side)	12 A	Black	Solder	UL94 V-0	0.079 in	2 mm	1	9	Vertical	300 V	16 A	100 °C	-40 °C	Mating Flange	0.472 in	12 mm	9	Liquid Crystal Polymer (LCP)	Through Hole	5 mm	0.197 in	320 V	Copper Alloy	Tin
Phoenix Contact 0803369																										Thermomark Card Thermomark Prime Printers	Magazine
Phoenix Contact 2702484	LED Module		Cool White												IP67 With Connector													Rectangle	900 lm	85	Flat	70 mm	370 mm	75 ° 95 °	58 mm	5000 K
Phoenix Contact 2702491	LED Module		Cool White												IP67 IPX9													Rectangle	460 lm	65	Flat	74 mm	284 mm		20 mm	6500 K	40 °
Phoenix Contact 2702486	LED Module		Cool White												IP67 With Connector													Rectangle	1800 lm	85	Flat	70 mm	650 mm	75 ° 95 °	58 mm	5000 K
Phoenix Contact 2702482	LED Module		Cool White												IP67 With Connector													Rectangle	1680 lm	80	Flat	40 mm	540 mm	85 ° 95 °	30 mm	5000 K
Phoenix Contact 2702477	LED Module		Cool White												IP67													Rectangle	600 lm	75	Flat	22.5 mm	616 mm	95 ° 105 °	23 mm
Phoenix Contact 2702476	LED Module		Cool White												IP67													Rectangle	300 lm	75	Flat	22.5 mm	336 mm	95 ° 105 °	23 mm
Phoenix Contact 2702478	LED Module		Cool White												IP67													Rectangle	900 lm	75	Flat	22.5 mm	896 mm	95 ° 105 °	23 mm
Phoenix Contact 2702483	LED Module		Cool White												IP67 With Connector													Rectangle	2280 lm	80	Flat	40 mm	715 mm	85 ° 95 °	30 mm	5000 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 533.59
		10	$ 503.94

Description

General part information

27024 Series

Sensor Cables / Actuator Cables SAC-5P-M12MSL/ 3-280 FE

Documents

Technical documentation and resources
