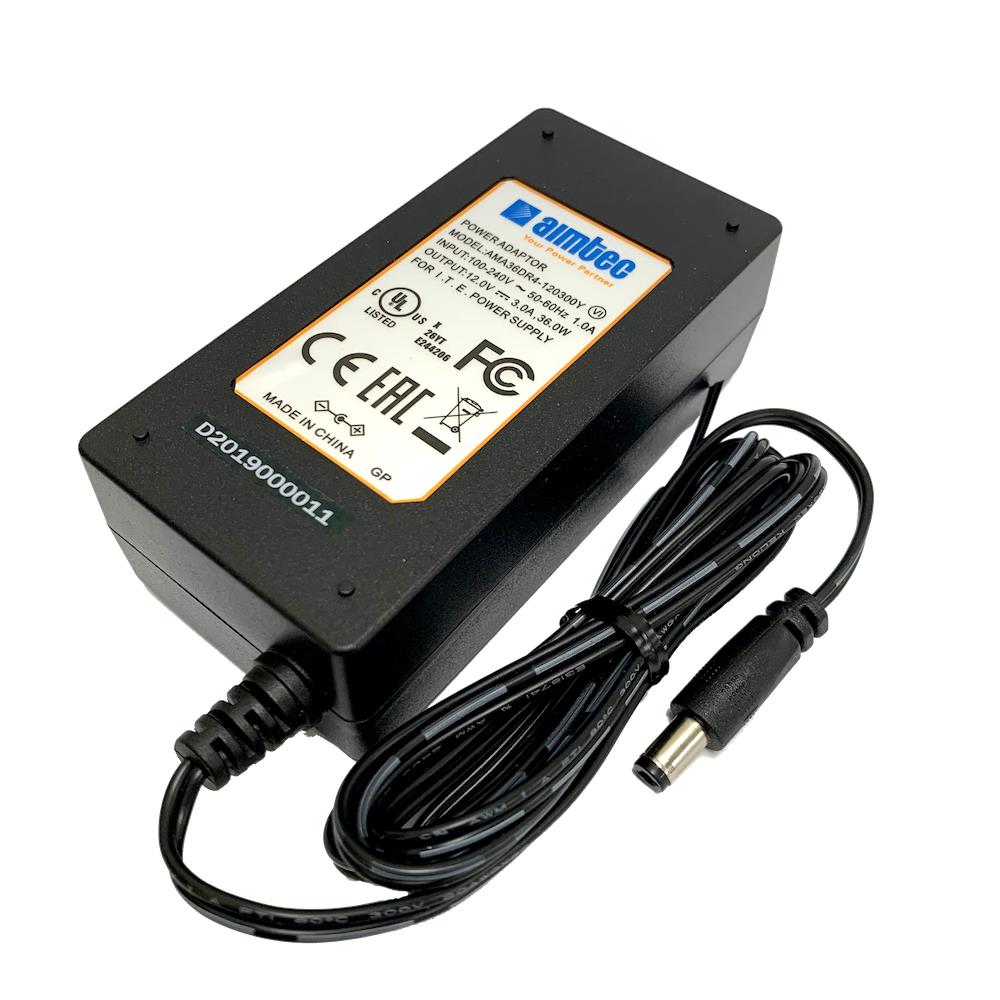

AMA36DR4-120250Y

Active

aimtec

AC/DC DESKTOP ADAPTER 12V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMA36DR4-120250Y

Active

aimtec

AC/DC DESKTOP ADAPTER 12V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMA36DR4-120250Y

Applications	ITE (Commercial)
Approval Agency	UL, CE
Cord Length	60.2 in
Cord Length	1.5 m
Current - Output (Max) [Max]	2.5 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	30 W
Region Utilized	International
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	50 mm
Size / Dimension [y]	1.97 "
Size / Dimension [z]	33.9 mm
Size / Dimension [z]	1.33 "
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V
Weight [custom]	270 g
Weight [custom]	0.595 lb

AMA36 Series

Part	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Input Type	Output Connector [diameter]	Output Connector [x]	Output Connector	Form	Standard Number	Efficiency	Approval Agency	No Load Power Consumption [Max]	Operating Temperature [Max]	Polarization	Voltage - Output	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Region Utilized	Weight [custom]	Weight [custom]	Input Connector	Current - Output (Max) [Max]	Weight	Weight	No Load Power Consumption
aimtec AMA36DR4-120300Y	90 VAC	264 VAC	60.2 in	1.5 m	Cord	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class II)	60950-1	Level VI	CE UL	75 mW	40 °C	Positive Center	12 V	ITE (Commercial)	33.9 mm	100 mm	50 mm	1.33 "	1.97 "	3.94 in	36 W	International	270 g	0.595 lb	IEC 320-C8	3 A
aimtec AMA36UR4-120300Y	90 VAC	264 VAC	60.2 in	1.5 m	Fixed Blade	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Wall Mount (Class II)	60950-1	Level VI	CE UL	75 mW	40 °C	Positive Center	12 V	ITE (Commercial)	75.5 mm	83 mm	35 mm	2.97 in	1.38 "	3.27 in	36 W	North America			NEMA 1-15P	3 A	0.289 lb	131 g
aimtec AMA36DR4-120250Y	90 VAC	264 VAC	60.2 in	1.5 m	Cord	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class II)	60950-1	Level VI	CE UL		40 °C	Positive Center	12 V	ITE (Commercial)	33.9 mm	100 mm	50 mm	1.33 "	1.97 "	3.94 in	30 W	International	270 g	0.595 lb	IEC 320-C8	2.5 A			100 mW
aimtec AMA36UR5-120300Y	90 VAC	264 VAC	60.2 in	1.5 m	Fixed Blade	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Wall Mount (Class II)	60950-1	Level VI	CE UL	75 mW	40 °C	Positive Center	12 V	ITE (Commercial)	75.5 mm	83 mm	35 mm	2.97 in	1.38 "	3.27 in	36 W	North America			NEMA 1-15P	3 A	0.289 lb	131 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.63
		10	$ 16.75
		25	$ 16.09
		50	$ 15.43
		100	$ 14.11
		250	$ 13.23
		500	$ 12.12

Description

General part information

AMA36 Series

12V 30 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
