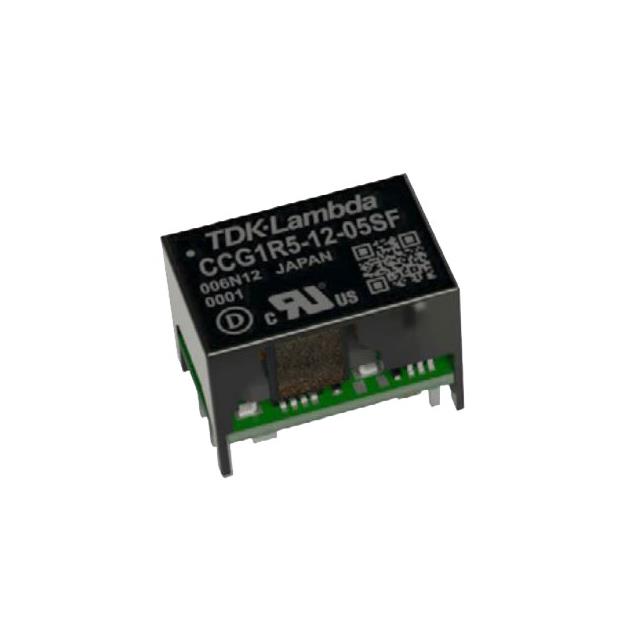

CCG1R5-24-03SF - CCG1R5-24-03SF

CCG1R5-24-03SF

Active
TDK-LAMBDA

ISOLATED DC/DC CONVERTERS - THROUGH HOLE INPUT 12/24VDC, OUTPUT 3.3V 0.4A, 1.32W TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+2
CCG1R5-24-03SF - CCG1R5-24-03SF

CCG1R5-24-03SF

Active
TDK-LAMBDA

ISOLATED DC/DC CONVERTERS - THROUGH HOLE INPUT 12/24VDC, OUTPUT 3.3V 0.4A, 1.32W TH

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationCCG1R5-24-03SF
ApplicationsITE (Commercial)
Approval AgencyCE, CSA, EN, UL, IEC, UKCA
Control FeaturesActive Low, Enable
Current - Output (Max) [Max]400 mA
Efficiency73 %
FeaturesOCP, Remote On/Off, Adjustable Output
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature [Max]100 °C
Operating Temperature [Min]-40 °C
Package / Case6-DIP Module
Power (Watts)1.3 W
Size / Dimension [x]0.62 in
Size / Dimension [x]15.7 mm
Size / Dimension [y]10.4 mm
Size / Dimension [y]0.41 in
Size / Dimension [z]11.5 mm
Size / Dimension [z]0.45 "
Standard Number62368-1
TypeIsolated Module
Voltage - Input (Max) [Max]36 V
Voltage - Input (Min) [Min]9 V
Voltage - Isolation1.5 kV
Voltage - Output 13.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 14.24
10$ 13.72
25$ 13.19
50$ 12.66
NewarkEach 10$ 13.72
25$ 13.19
50$ 12.66
SagerN/A 1$ 14.24
10$ 13.72
25$ 13.19
50$ 12.66

Description

General part information

CCG1R5-10 Series

Isolated DC/DC Converters - Through Hole Input 5/12VDC, Output 3.3V 0.8A, 2.64W TH
