142286

Active

Amphenol RF

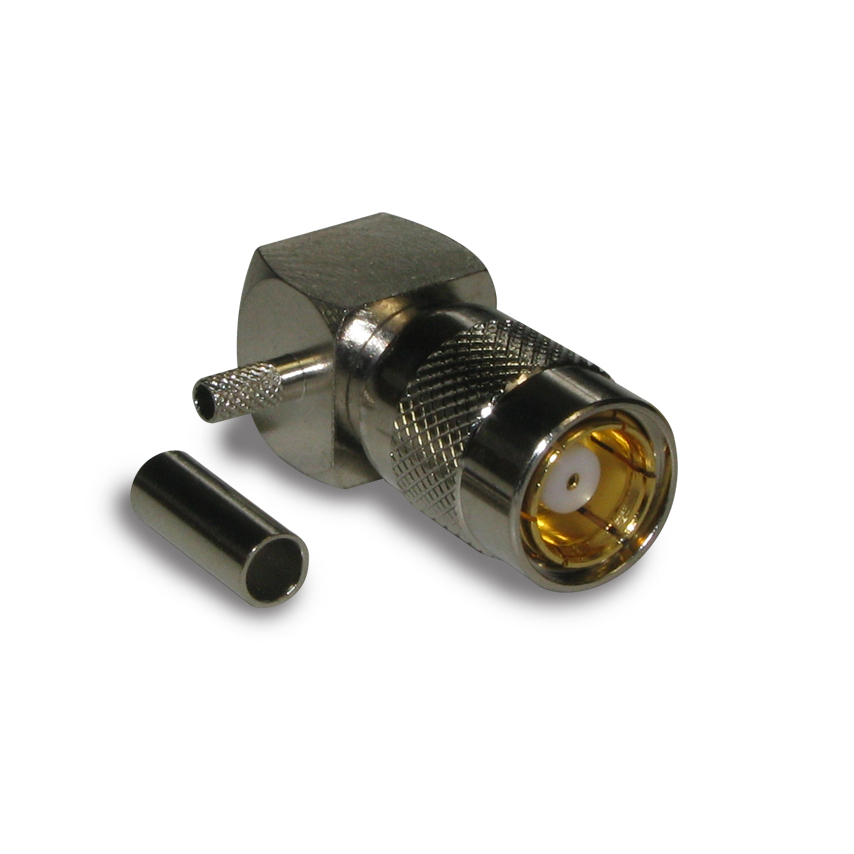

CONN SMB PLUG R/A 75OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

142286

Active

Amphenol RF

CONN SMB PLUG R/A 75OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	142286

Body Finish	Gold
Body Material	Brass
Cable Group	179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	75 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

1422 Series

Part	Mounting Type	Body Finish	Body Material	Connector Type	Connector Style	Voltage Rating	Includes	Cable Group	Mating Cycles	Fastening Type	Center Contact Material	Number of Ports	Impedance	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Dielectric Material	Insertion Loss	Mounting Feature	Housing Color	Center Contact Plating	Frequency - Max [Max]	Cable Group	Center Gender	Convert To (Adapter End)	Adapter Type	Conversion Type	Style	Adapter Series	Convert From (Adapter End)
Amphenol RF 142256	Panel Mount Flange (2 Hole)	Gold	Brass	Female Socket Plug	SMB
Amphenol RF 142231		Gold	Brass	Jack Male Pin	SMB	335 V	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut	178A 178B 196 196A M17/93-RG178 RG-178	500	Snap-On	Brass	1	50 Ohms	Solder	-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	0.3 dB	Bulkhead - Front Side Nut	Gold	Gold	4 GHz
Amphenol RF 142229	Free Hanging (In-Line)	Gold	Brass	Female Socket Plug	SMB	335 V		178A 178B 196 196A M17/93-RG178 RG-178	500	Snap-On	Beryllium Copper	1	50 Ohms	Solder	-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	0.3 dB		Gold	Gold	4 GHz
Amphenol RF 142288	Free Hanging (In-Line) Right Angle	Nickel	Brass	Female Socket Plug	SMB	335 V	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator	178A 178B 196 196A M17/93-RG178 RG-178	500	Snap-On	Beryllium Copper	1	50 Ohms	Solder	-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	0.6 dB		Silver	Gold	3 GHz
Amphenol RF 142225	Free Hanging (In-Line)	Gold	Brass	Jack Male Pin	SMB	335 V		Semi Rigid	500	Snap-On	Brass	1	50 Ohms	Solder	-65 ░C	165 °C	Solder	Polytetrafluoroethylene (PTFE)	0.3 dB		Gold	Gold	4 GHz	0.047 in
Amphenol RF 142271	Panel Mount Bulkhead - Front Side Nut	Nickel	Brass
Amphenol RF 142251	Free Hanging (In-Line) Right Angle	Nickel	Brass	Jack Male Pin	SMB	335 V	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator	188 188A 316 LMR-100 M17/119-RG174 RG-174	500	Snap-On	Brass	1	50 Ohms	Solder	-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	0.6 dB		Silver	Gold	4 GHz
Amphenol RF 142244	Free Hanging (In-Line)	Gold	Brass							Snap-On	Brass		50 Ohms		-65 ░C	165 °C		Polytetrafluoroethylene (PTFE)				Gold	4 GHz		Male to Male	Male Pin SMB Jack	Jack to Jack	Same Series	Straight	SMB to SMB	SMB Jack Male Pin
Amphenol RF 142250		Gold	Brass				1 Connector 1 Lockwasher 1 Nut			Snap-On	Brass		50 Ohms		-65 ░C	165 °C		Polytetrafluoroethylene (PTFE)		Bulkhead		Gold	4 GHz		Male to Male	Male Pin SMB Jack	Jack to Jack	Same Series	Straight	SMB to SMB	SMB Jack Male Pin
Amphenol RF 142286	Free Hanging (In-Line) Right Angle	Gold	Brass	Female Socket Plug	SMB	335 V	1 Connector 1 End Cap 1 Ferrule	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	500	Snap-On	Beryllium Copper	1	75 Ohms	Solder	-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	0.6 dB		Gold	Gold	4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	300	$ 11.02

Description

General part information

1422 Series

SMB Connector Plug, Female Socket 75 Ohms Free Hanging (In-Line), Right Angle Solder
