OPB707C

Active

TT Electronics/Optek Technology

SENSR OPTO TRANS 1.27MM REFL PCB

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSR OPTO TRANS 1.27MM REFL PCB

Technical Specifications

Parameters and characteristics for this part

Specification	OPB707C

Current - Collector (Ic) (Max) [Max]	125 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Photodarlington
Package / Case	PCB Mount
Sensing Distance	0.05 in
Sensing Distance	1.27 mm
Sensing Method	Reflective
Voltage - Collector Emitter Breakdown (Max)	15 V

Part	Package / Case	Output Type	Sensing Method	Voltage - Collector Emitter Breakdown (Max)	Current - DC Forward (If) (Max)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance	Sensing Distance	Current - Collector (Ic) (Max) [Max]
TT Electronics/Optek Technology OPB707C	PCB Mount	Photodarlington	Reflective	15 V	50 mA	Through Hole	85 °C	-40 °C	0.05 in	1.27 mm	125 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

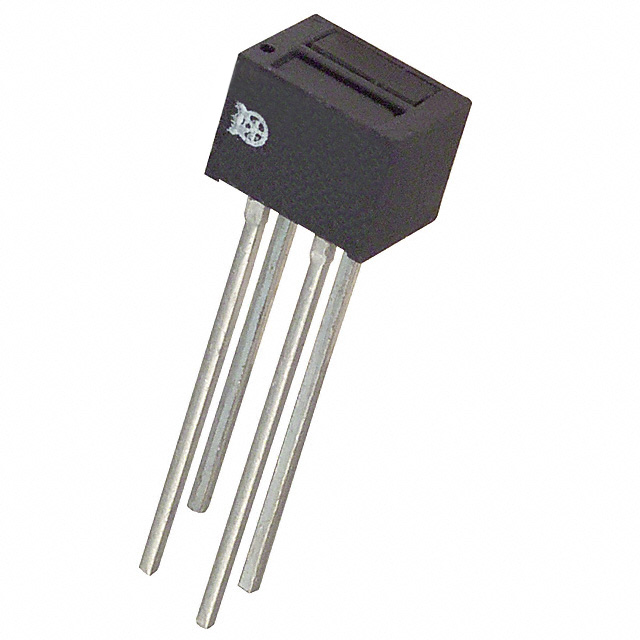

Reflective Optical Sensor 0.050" (1.27mm) PCB Mount

Technical documentation and resources
