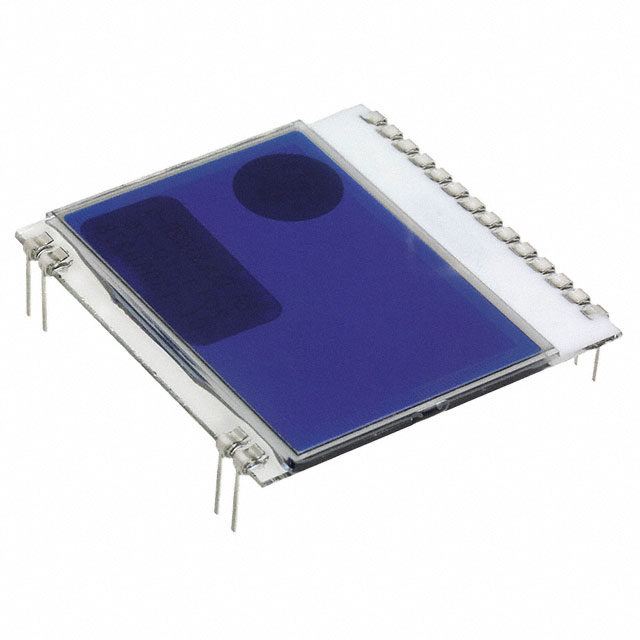

EA DOGS102B-6
ActiveDisplay Visions
DISPLAY: LCD; GRAPHICAL; 102X64; STN NEGATIVE; BLUE; 39X38.1MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EA DOGS102B-6
ActiveDisplay Visions
DISPLAY: LCD; GRAPHICAL; 102X64; STN NEGATIVE; BLUE; 39X38.1MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EA DOGS102B-6 |
|---|---|
| Background Color | Blue |
| Backlight | Without Backlight |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch [y] | 0.33 mm |
| Dot Pitch [z] | 0.35 mm |
| Dot Pixels [x] | 102 |
| Dot Pixels [y] | 64 |
| Dot Size [x] | 0.32 mm |
| Dot Size [y] | 0.34 mm |
| Graphics Color | White |
| Interface | SPI |
| Viewing Area [y] | 36 mm |
| Viewing Area [z] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EADOGS102 Series
Graphic LCD Display Module Transmissive White STN - Super-Twisted Nematic SPI 102 x 64
