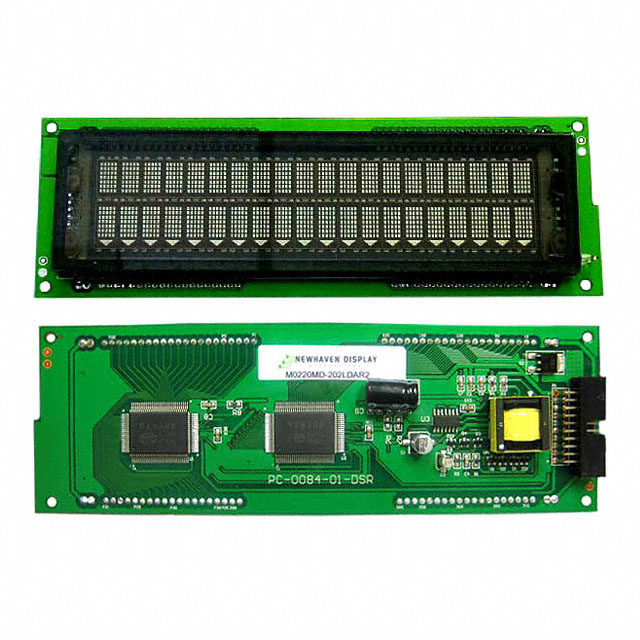

M0220MD-202LDAR2

Obsolete

Newhaven Display Intl

MODULE VF CHAR 2X20 10.5MM

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

MODULE VF CHAR 2X20 10.5MM

Technical Specifications

Parameters and characteristics for this part

Part	Viewing Area [x]	Viewing Area [y]	Format [x]	Format [y]	Operating Temperature [Max]	Operating Temperature [Min]	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Display Format [x]	Display Format [y]	Interface	Display Type	Controller Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Character Size [y]	Character Size [z]
Newhaven Display Intl M0220MD-202MDAR1-1	101.75 mm	18.5 mm	5 Dots	8 Dots	85 °C	-40 °C	43 mm	16.6 mm	146 mm	20	2	Serial	Character	PT6314	4.5 V	5.5 V	3.68 mm	8.78 mm
Newhaven Display Intl M0220MD-202MDAR1-3	101.75 mm	18.5 mm	5 Dots	8 Dots	85 °C	-40 °C	43 mm	16.6 mm	146 mm	20	2	Parallel/Serial	Character	PT6314	4.5 V	5.5 V	3.68 mm	8.78 mm
Newhaven Display Intl M0220MD-202LDAR2	146.1 mm	29 mm	5 Dots	7	70 °C	-20 C	64 mm	25 mm	193 mm	20	2		Character		4.5 V	5.5 V	5.5 mm	10.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Vacuum Fluorescent Display (VFD) 20 x 2 Character 4.5V ~ 5.5V 193.00mm x 64.00mm x 25.00mm

Technical documentation and resources
