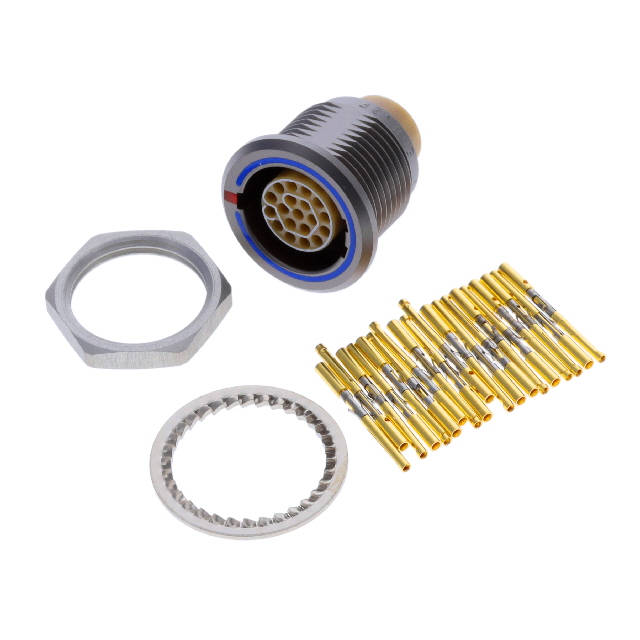

EGN.2F.319.XLM

Active

LEMO

CONN RCPT FMALE 19POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 19POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	EGN.2F.319.XLM

Applications	Aerospace
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	19
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-15 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	319
Shielding	Shielded
Termination	Crimp

Part	Fastening Type	Number of Positions	Insert Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Primary Material	Current Rating (Amps)	Material Flammability Rating	Shell Finish	Termination	Contact Finish - Mating	Contact Material	Shell Material	Shell Size - Insert	Connector Type	Ingress Protection	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Feature	Orientation
LEMO EGN.2F.319.XLM	Push-Pull	19	Polyetheretherketone (PEEK)	Gray	200 °C	-15 °C	Shielded	Metal	5 A	UL94 V-0	Nickel	Crimp	Gold	Bronze	Aluminum Alloy	319	Receptacle Female Sockets	IP50	Aerospace	59 Áin	1.5 Ám	Bulkhead - Rear Side Nut	N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

19 Position Circular Connector Receptacle, Female Sockets Crimp
