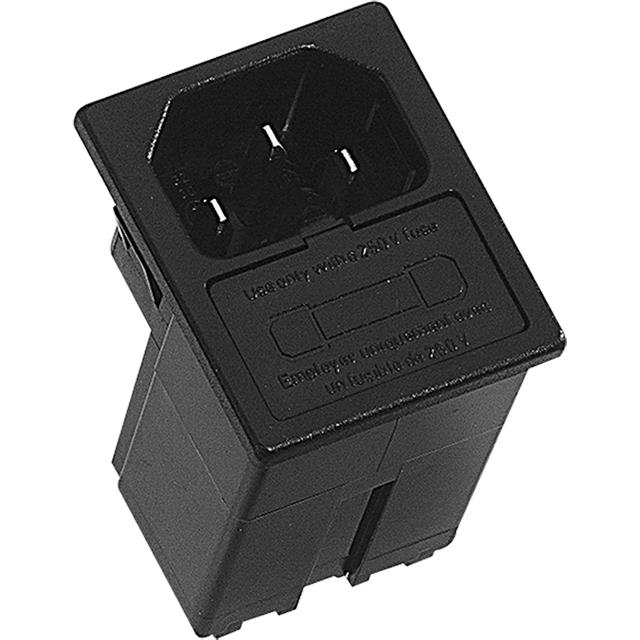

42R35-3151-200

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	42R35-3151-200

Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Fuse Holder, Drawer	Fuse Holder
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	37.5 mm
Panel Cutout Dimensions [y]	30.5 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Material Flammability Rating	Termination	Termination	Termination	Mounting Type	Connector Type	Connector Style	Fuse Holder, Drawer
Power Dynamics, Inc. 42R35-3152-150	37.5 mm	30.5 mm	CSA UL VDE	UL94 V-0	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In	Receptacle Male Blades - Module	IEC 320-C14	Fuse Holder Twin Fused
Power Dynamics, Inc. 42R35-3151-200	37.5 mm	30.5 mm	CSA UL VDE	UL94 V-0	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In	Receptacle Male Blades - Module	IEC 320-C14	Fuse Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources
