5530714F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN/RED/YL RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5530714F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN/RED/YL RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5530714F

Color	Yellow (x 1), Red (x 1), Green
Configuration	2 High
Current	30 mA, 30 mA, 20 mA
Lens Size [diameter]	3 mm
Lens Style	Round with Domed Top
Lens Type	Diffused
Millicandela Rating [custom]	4.7 mcd
Millicandela Rating [custom]	6.3 mcd, 10 mcd
Millicandela Rating [custom]	4.3 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °, 80 °
Voltage Rating	2 V, 2.1 V, 2.1 V
Wavelength - Peak	585 nm, 565 nm, 635 nm

5530714 Series

Part	Lens Style	Configuration	Wavelength - Peak	Voltage Rating	Lens Type	Current	Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Size [diameter]	Viewing Angle	Mounting Type
DIALIGHT 5530714F	Round with Domed Top	2 High	565 nm 585 nm 635 nm	2 V 2.1 V 2.1 V	Diffused	20 mA 30 mA 30 mA	Green Red (x 1) Yellow (x 1)	4.7 mcd	6.3 mcd 10 mcd	4.3 mcd	3 mm	60 ° 80 °	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.41
		50	$ 2.27
		100	$ 1.75
		1000	$ 1.36
		5000	$ 1.25

Description

General part information

5530714 Series

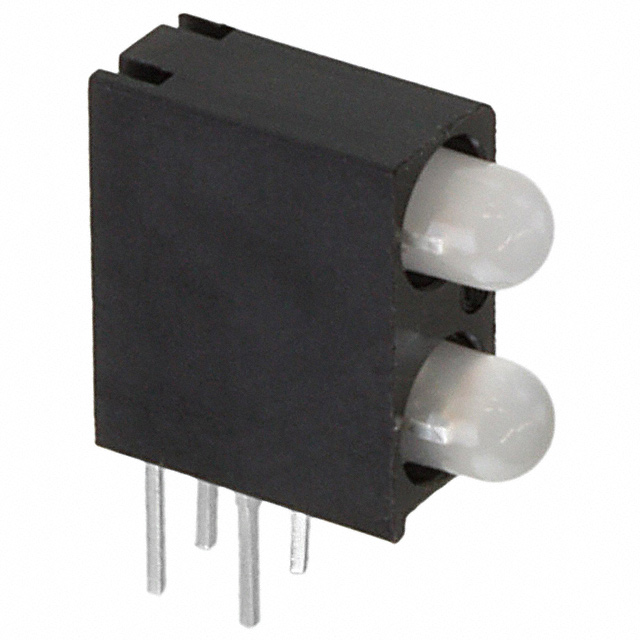

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green, Red (x 1), Green, Yellow (x 1) Diffused 2.1V Green, 2V Red, 2.1V Yellow 30mA Green, 30mA Red, 20mA Yellow Round with Domed Top 3.00mm Dia Through Hole, Right Angle
