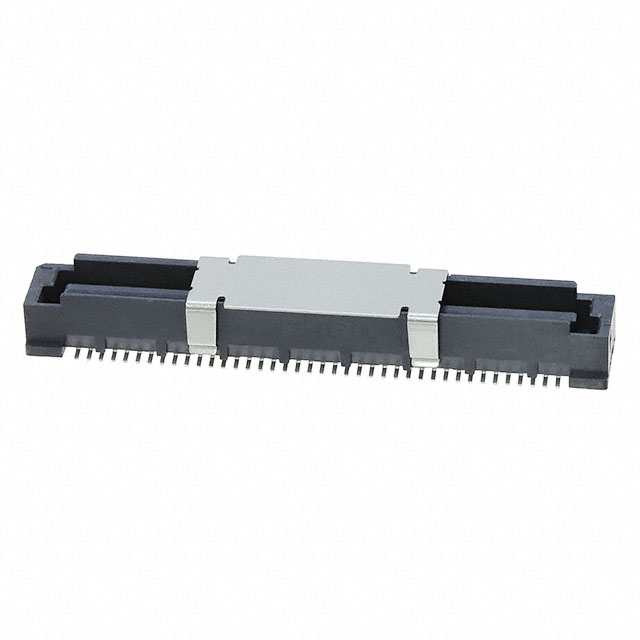

G832MB110802222HR
ActiveAmphenol ICC (Commercial Products)
CONN PLUG 80POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G832MB110802222HR
ActiveAmphenol ICC (Commercial Products)
CONN PLUG 80POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G832MB110802222HR |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Height Above Board | 4.7 mm |
| Height Above Board | 0.185 in |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.21 | |
| 10 | $ 3.82 | |||
| 25 | $ 3.62 | |||
| 50 | $ 3.53 | |||
| 100 | $ 3.37 | |||
| 250 | $ 2.94 | |||
| Digi-Reel® | 1 | $ 4.21 | ||
| 10 | $ 3.82 | |||
| 25 | $ 3.62 | |||
| 50 | $ 3.53 | |||
| 100 | $ 3.37 | |||
| 250 | $ 2.94 | |||
| Tape & Reel (TR) | 3000 | $ 2.29 | ||
Description
General part information
G832MB110 Series
80 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
