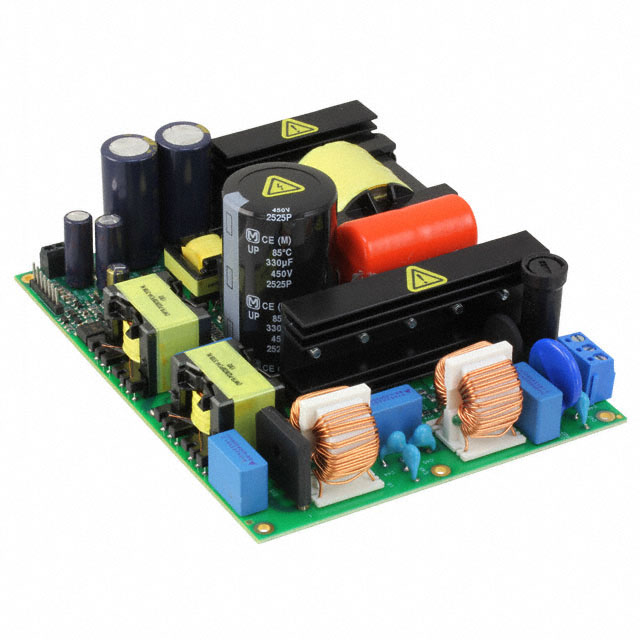

UCC25600EVM-644

Obsolete

Texas Instruments

EVAL MODULE FOR UCC25600-644

Search across all available documentation for this part.

Obsolete

Texas Instruments

EVAL MODULE FOR UCC25600-644

Technical Specifications

Parameters and characteristics for this part

Specification	UCC25600EVM-644

Board Type	Fully Populated
Current - Output	12 A
Main Purpose	AC/DC, Primary and Secondary Side with PFC
Outputs and Type	Isolated
Outputs and Type	1
Power - Output	600 W
Regulator Topology	Resonant
Supplied Contents	Board(s)
Utilized IC / Part	UCC25600
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	108 VAC

Part	Outputs and Type	Outputs and Type	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Power - Output	Current - Output	Main Purpose	Utilized IC / Part	Board Type	Supplied Contents
Texas Instruments UCC25600EVM-644	Isolated	1	Resonant	265 VAC	108 VAC	600 W	12 A	AC/DC Primary and Secondary Side with PFC	UCC25600	Fully Populated	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

UCC25600 - AC/DC, Primary and Secondary Side with PFC 1, Isolated Outputs Evaluation Board
