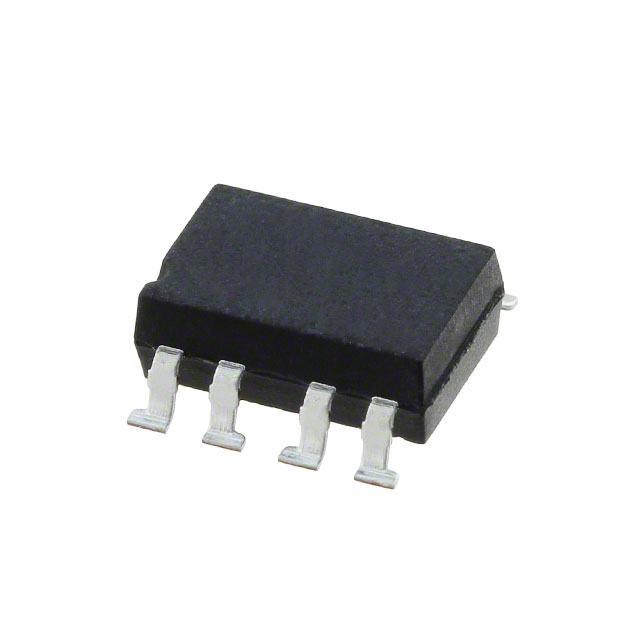

VO1263AACTR
ActiveVishay General Semiconductor - Diodes Division
OPTOISO 5.3KV 2CH PHVOLT 8SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VO1263AACTR
ActiveVishay General Semiconductor - Diodes Division
OPTOISO 5.3KV 2CH PHVOLT 8SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VO1263AACTR |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Output / Channel | 3 µA |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Photovoltaic |
| Supplier Device Package | 8-SMD |
| Turn On / Turn Off Time (Typ) | 472 µs, 16 µs |
| Voltage - Forward (Vf) (Typ) | 1.3 V |
| Voltage - Isolation | 5300 Vrms |
| Voltage - Output (Max) [Max] | 16.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.07 | |
| 10 | $ 3.58 | |||
| 100 | $ 2.94 | |||
| 500 | $ 2.48 | |||
| Digi-Reel® | 1 | $ 5.07 | ||
| 10 | $ 3.58 | |||
| 100 | $ 2.94 | |||
| 500 | $ 2.48 | |||
| Tape & Reel (TR) | 1000 | $ 2.27 | ||
| 2000 | $ 2.18 | |||
Description
General part information
VO1263 Series
Optoisolator Photovoltaic Output 5300Vrms 2 Channel 8-SMD
