1424671

Active

Phoenix Contact

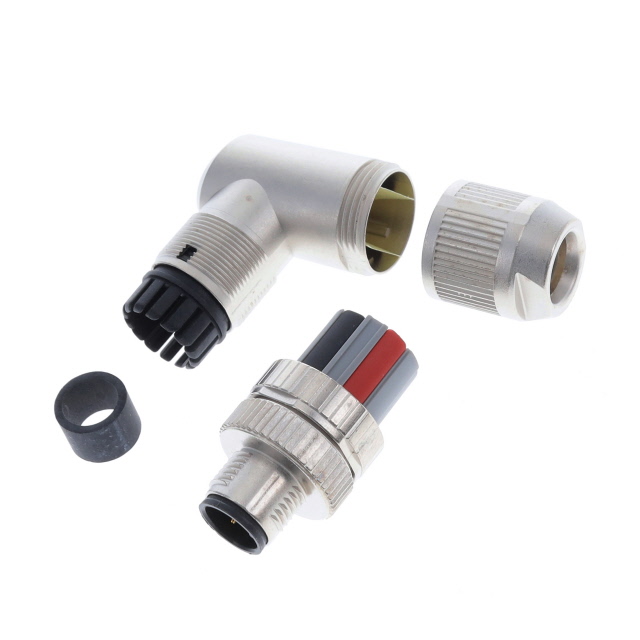

SENSOR CONNECTOR, DEVICENET SERIES, M12, PLUG, 5 CONTACTS, SCREW PIN, RIGHT ANGLE CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

1424671

Active

Phoenix Contact

SENSOR CONNECTOR, DEVICENET SERIES, M12, PLUG, 5 CONTACTS, SCREW PIN, RIGHT ANGLE CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1424671

Applications	Data Management
Backshell Material, Plating	Nickel, Zinc Die Cast
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Max] [custom]	8 mm
Cable Opening [Min] [custom]	4 mm
Cable Opening [Min] [custom]	0.157 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Tin
Current Rating (Amps)	4 A
Fastening Type	Push-Twist
Features	Backshell
Ingress Protection	IP67, IP65
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Spring-Cage
Voltage Rating	48 VAC, 60 VDC

PSI Series

Interface Modules PSI-WL-RS232- RS485/BT/2DO

...

Part	Mounting Type	Connector Type	Connector Style	Impedance	Frequency - Max [Max]	Accessory Type	Color	For Use With/Related Products	Ingress Protection	Shielding	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Orientation	Shell Finish	Primary Material	Current Rating (Amps)	Backshell Material, Plating	Contact Finish - Mating	Features	Fastening Type	Applications	Termination	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Material Flammability Rating	Shell Material	Shell Size - Insert	Insert Material	Modulation or Protocol	Frequency [Max]	Frequency [Min]	Function	Data Rate (Max) [Max]	Power - Output	Interface	Voltage - Supply	Sensitivity	Frequency	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Rate (Max)
Phoenix Contact 2884978	Cap Free Hanging	Male Pin Plug	N Type	50 Ohms	6000 MHz
Phoenix Contact 3240284						Fitting - Wire Retainer Clip In	Black	For All PVC Wiring Duct Types
Phoenix Contact 1424671	Free Hanging (In-Line) Right Angle	Male Pins Plug					Silver		IP65 IP67	Shielded	4 mm	0.315 in	0.157 in	8 mm	A	Nickel	Metal	4 A	Nickel Zinc Die Cast	Gold	Backshell	Push-Twist	Data Management	Spring-Cage	Copper Tin	85 °C	-40 °C	48 VAC 60 VDC	UL94 V-0	Zinc Die Cast	M12-5	Polyamide (PA66) Nylon 6/6
Phoenix Contact 2736770																							Bluetooth v1.2										Bluetooth v1.2	2.48 GHz	2.402 GHz	Bluetooth Transceiver	2 MBaud	8 dBm	M-12	24 VDC
Phoenix Contact 1424664	Free Hanging (In-Line)	Female Sockets Plug					Silver		IP65 IP67	Shielded	4 mm	0.315 in	0.157 in	8 mm	B	Nickel	Metal	4 A	Nickel Zinc Die Cast	Gold	Backshell Coupling Nut			Push In Spring	Bronze	85 °C	-40 °C	48 VAC 60 VDC	UL94 V-0	Zinc Die Cast	M12-5	Polyamide (PA66) Nylon 6/6
Phoenix Contact 1424665	Free Hanging (In-Line) Right Angle	Receptacle Female Sockets					Silver		IP65 IP67	Shielded	4 mm	0.315 in	0.157 in	8 mm	B	Nickel	Metal	4 A	Nickel Zinc Die Cast	Gold	Backshell Coupling Nut	Push-Twist		Spring-Cage	Copper Tin	85 °C	-40 °C	48 VAC 60 VDC	UL94 V-0	Zinc Die Cast	M12-5	Polyamide (PA66) Nylon 6/6
Phoenix Contact 2900046																							Industrial Monitoring and Control Wireless Alarm and Security Systems										802.11 b/g			Transceiver	54 Mbps	400 mW			-97 dBm	2.4 GHz	12 V	30 VDC
Phoenix Contact 2693208																					IP65		General Purpose													Bluetooth Transceiver WLAN		8 dBm	Connector		-88 dBm	2.4 GHz	19.2 V	32 VDC	1 Mbps
Phoenix Contact 2867047																							General Purpose											928 MHz	902 MHz	Receiver
Phoenix Contact 1424676	Free Hanging (In-Line)	Receptacle Female Sockets					Silver		IP65 IP67	Shielded	4 mm	0.315 in	0.157 in	8 mm	B	Nickel	Metal	4 A	Nickel Zinc Die Cast	Gold	Backshell Coupling Nut	Push-Twist	Industrial Automation	Spring-Cage	Copper Tin	85 °C	-40 °C	48 VAC 60 VDC	UL94 V-0	Zinc Die Cast	M12-5	Polyamide (PA66) Nylon 6/6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.37
		10	$ 29.78
		50	$ 27.52
		100	$ 26.22
		250	$ 26.08
Newark	Each	1	$ 35.18

Description

General part information

PSI Series

Interface Modules PSI-WL-RS232- RS485/BT/2DO

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
