09620640481

Active

HARTING Technology Group

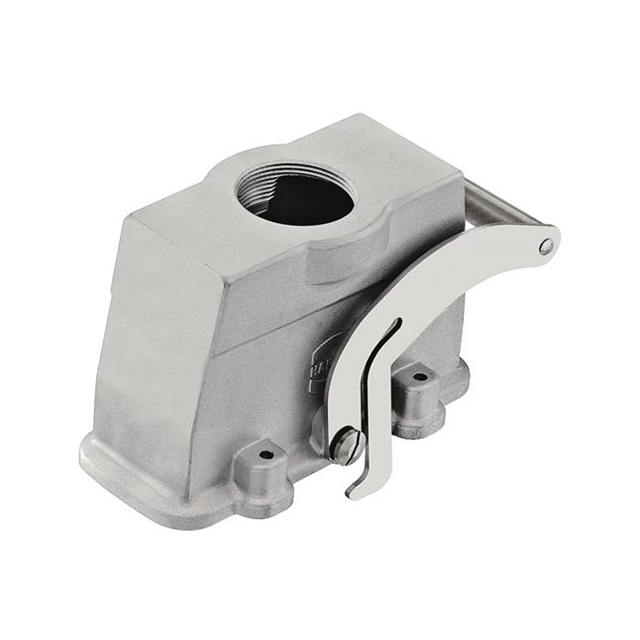

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; FOR CABLE; IP65; EMC

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; FOR CABLE; IP65; EMC

Technical Specifications

Parameters and characteristics for this part

Specification	09620640481

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	5.236 ", 133 mm
Size / Dimension [y]	71 mm, 2.795 "
Size / Dimension [z]	85 mm, 3.346 "
Style	Top Entry
Thread Size	PG29

Part	Style	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Material	Size	Ingress Protection	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Thread Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
HARTING Technology Group 09620640381	Bottom Entry	Locking Clip (1) on Hood	125 °C	-40 °C	Base - Panel Mount	Aluminum Die Cast	24 B	IP65 - Dust Tight Water Resistant
HARTING Technology Group 09620640388
HARTING Technology Group 09620640541	Side Entry	Screw Locks on Hood	125 °C	-40 °C	Hood	Aluminum Die Cast	24 B	IP65 - Dust Tight Water Resistant	5.236 " 133 mm	2.795 " 71 mm	3.346 " 85 mm	PG29
HARTING Technology Group 09620640581	Side Entry	Locking Clip (1) on Hood	125 °C	-40 °C	Hood	Aluminum Die Cast	24 B	IP65 - Dust Tight Water Resistant	5.236 " 133 mm	2.795 " 71 mm	3.346 " 85 mm	PG29
HARTING Technology Group 09620640540	Side Entry	Screw Locks on Hood	125 °C	-40 °C	Hood	Aluminum Die Cast	24 B	IP65 - Dust Tight Water Resistant	5.236 " 133 mm	2.795 " 71 mm	3.346 " 85 mm	PG21
HARTING Technology Group 09620640301	Bottom Entry	Screw Locks on Hood	125 °C	-40 °C	Base - Panel Mount	Aluminum Die Cast	24 B	IP65 - Dust Tight Water Resistant	130 mm	65.6 mm	28.2 mm		1.11 in	2.583 "	5.118 in
HARTING Technology Group 09620640481	Top Entry	Locking Clip (1) on Hood	125 °C	-40 °C	Hood	Aluminum Die Cast	24 B	IP65 - Dust Tight Water Resistant	5.236 " 133 mm	2.795 " 71 mm	3.346 " 85 mm	PG29

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry PG29 24B IP65 - Dust Tight, Water Resistant
