XVUZ06

Active

SQUARE D BY SCHNEIDER ELECTRIC

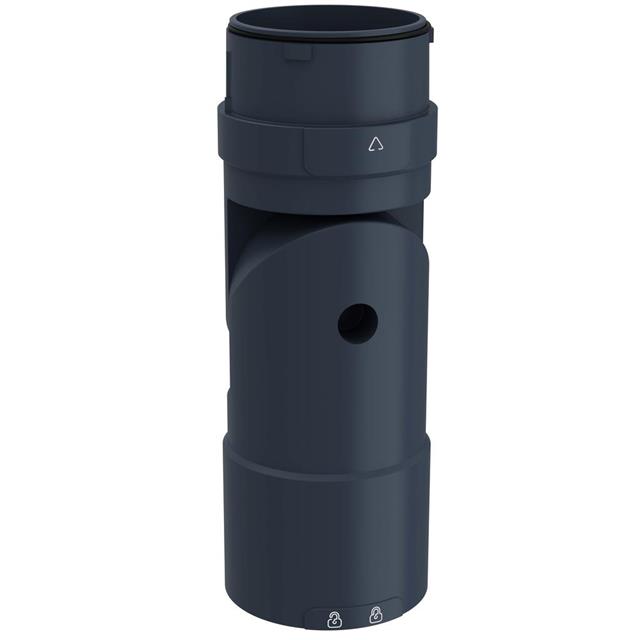

SIGNAL INDICATOR ACCESSORY, HARMONY XVU, MOUNTING, FLEXIBLE, SWIVEL, BLACK

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

SIGNAL INDICATOR ACCESSORY, HARMONY XVU, MOUNTING, FLEXIBLE, SWIVEL, BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	XVUZ06

Ingress Protection	IP55 - Dust Protected, Water Resistant
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Termination Style	Wire Leads
Type	Mounting Base
Weight	195.05 g
Weight	0.43 lb

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Ingress Protection	Voltage - Supply	Weight	Weight	Termination Style
SQUARE D BY SCHNEIDER ELECTRIC XVUZ02Q	50 °C	-25 °C	110 VAC	240 VAC	Fixing Plate	IP65 - Dust Tight Water Resistant
SQUARE D BY SCHNEIDER ELECTRIC XVUZ05	50 °C	-25 °C			Fixing Plate	IP65 - Dust Tight Water Resistant	24 VAC	249.48 g	0.55 lb
SQUARE D BY SCHNEIDER ELECTRIC XVUZ01	50 °C	-25 °C			Fixing Plate	IP65 - Dust Tight Water Resistant		63.5 g	0.14 lb	Wire Leads
SQUARE D BY SCHNEIDER ELECTRIC XVUZ06	50 °C	-25 °C			Mounting Base	IP55 - Dust Protected Water Resistant		195.05 g	0.43 lb	Wire Leads
SQUARE D BY SCHNEIDER ELECTRIC XVUZ04	50 °C	-25 °C			Fixing Plate	IP65 - Dust Tight Water Resistant		303.91 g	0.67 lb
SQUARE D BY SCHNEIDER ELECTRIC XVUZ01Q	50 °C	-25 °C			Fixing Plate	IP65 - Dust Tight Water Resistant		63.5 g	0.14 lb	Wire Leads
SQUARE D BY SCHNEIDER ELECTRIC XVUZ03	50 °C	-25 °C	110 VAC	240 VAC	Fixing Plate	IP65 - Dust Tight Water Resistant				Wire Leads
SQUARE D BY SCHNEIDER ELECTRIC XVUZ02	50 °C	-25 °C			Fixing Plate Mounting Base	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Stack Light Mounting Base Wire Leads
