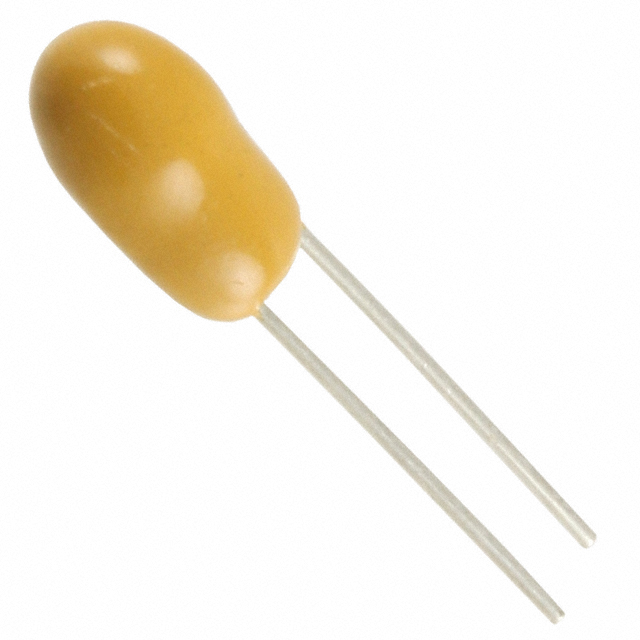

T350H226K025AT

Active

KEMET

TANTALUM CAPACITOR, POLAR, T350 SERIES, 22 F, 10%, 25 V, RADIAL LEADED, 2.54 MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT350H226K025AT Datasheet +2

T350H226K025AT

Active

KEMET

TANTALUM CAPACITOR, POLAR, T350 SERIES, 22 F, 10%, 25 V, RADIAL LEADED, 2.54 MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsT350H226K025AT Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T350H226K025AT

Capacitance	22 µF
ESR (Equivalent Series Resistance)	1.5 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	10.2 mm
Height - Seated (Max) [Max] [z]	0.402 "
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Manufacturer Size Code	H
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.299 in
Size / Dimension [diameter]	7.6 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	25 VDC

T350H Series

Part	Features	Tolerance	Mounting Type	ESR (Equivalent Series Resistance)	Capacitance	Voltage - Rated	Package / Case	Type	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]
KEMET T350H336M016AT	General Purpose	20 %	Through Hole	1.6 Ohm	33 ÁF	16 V	Radial	Conformal Coated	0.1 in	2.54 mm	10.2 mm	0.402 "	H	-55 °C	125 °C	0.299 in	7.6 mm
KEMET T350H476K010AS	General Purpose	10 %	Through Hole	1.7 Ohms	47 µF	10 V	Radial	Conformal Coated	0.1 in	2.54 mm	10.2 mm	0.402 "	H	-55 °C	125 °C	0.299 in	7.6 mm
KEMET T350H336K016AT7301	General Purpose	10 %	Through Hole	1.6 Ohm	33 ÁF	16 V	Radial	Conformal Coated	0.1 in	2.54 mm	10.2 mm	0.402 "	H	-55 °C	125 °C	0.299 in	7.6 mm
KEMET T350H226K025AT	General Purpose	10 %	Through Hole	1.5 Ohm	22 µF	25 VDC	Radial	Conformal Coated	0.1 in	2.54 mm	10.2 mm	0.402 "	H	-55 °C	125 °C	0.299 in	7.6 mm
KEMET T350H476K010AT	General Purpose	10 %	Through Hole	1.7 Ohms	47 µF	10 V	Radial	Conformal Coated	0.1 in	2.54 mm	10.2 mm	0.402 "	H	-55 °C	125 °C	0.299 in	7.6 mm
KEMET T350H226K025AS	General Purpose	10 %	Through Hole	1.5 Ohm	22 µF	25 VDC	Radial	Conformal Coated	0.1 in	2.54 mm	10.2 mm	0.402 "	H	-55 °C	125 °C	0.299 in	7.6 mm
KEMET T350H226J025AT	General Purpose	5 %	Through Hole	1.5 Ohm	22 µF	25 VDC	Radial	Conformal Coated	0.1 in	2.54 mm	10.2 mm	0.402 "	H	-55 °C	125 °C	0.299 in	7.6 mm
KEMET T350H107M006AT	General Purpose	20 %	Through Hole	1.6 Ohm	100 µF	6 VDC	Radial	Conformal Coated	0.1 in	2.54 mm	10.2 mm	0.402 "	H	-55 °C	125 °C	0.299 in	7.6 mm
KEMET T350H107K006AS	General Purpose	10 %	Through Hole	1.6 Ohm	100 µF	6.3 V	Radial	Conformal Coated	0.1 in	2.54 mm	10.2 mm	0.402 "	H	-55 °C	125 °C	0.299 in	7.6 mm
KEMET T350H226K025AT7301	General Purpose	10 %	Through Hole	1.5 Ohm	22 µF	25 VDC	Radial	Conformal Coated	0.1 in	2.54 mm	10.2 mm	0.402 "	H	-55 °C	125 °C	0.299 in	7.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.11
		10	$ 7.90
		50	$ 7.09
		100	$ 6.16
		500	$ 5.57
		1000	$ 5.17
Newark	Each	1	$ 8.40
		10	$ 6.68
		25	$ 6.67
		50	$ 6.10
		100	$ 5.61
		250	$ 5.60
		500	$ 5.22

Description

General part information

T350H Series

22 µF Conformal Coated Tantalum Capacitors 25 V Radial 1.5Ohm

Documents

Technical documentation and resources

T350H226K025AT

Datasheet

Technical Data Sheet EN

Datasheet

Manufacturer Catalogue EN

Datasheet
