45-2630.2AE0.000

Active

EAO

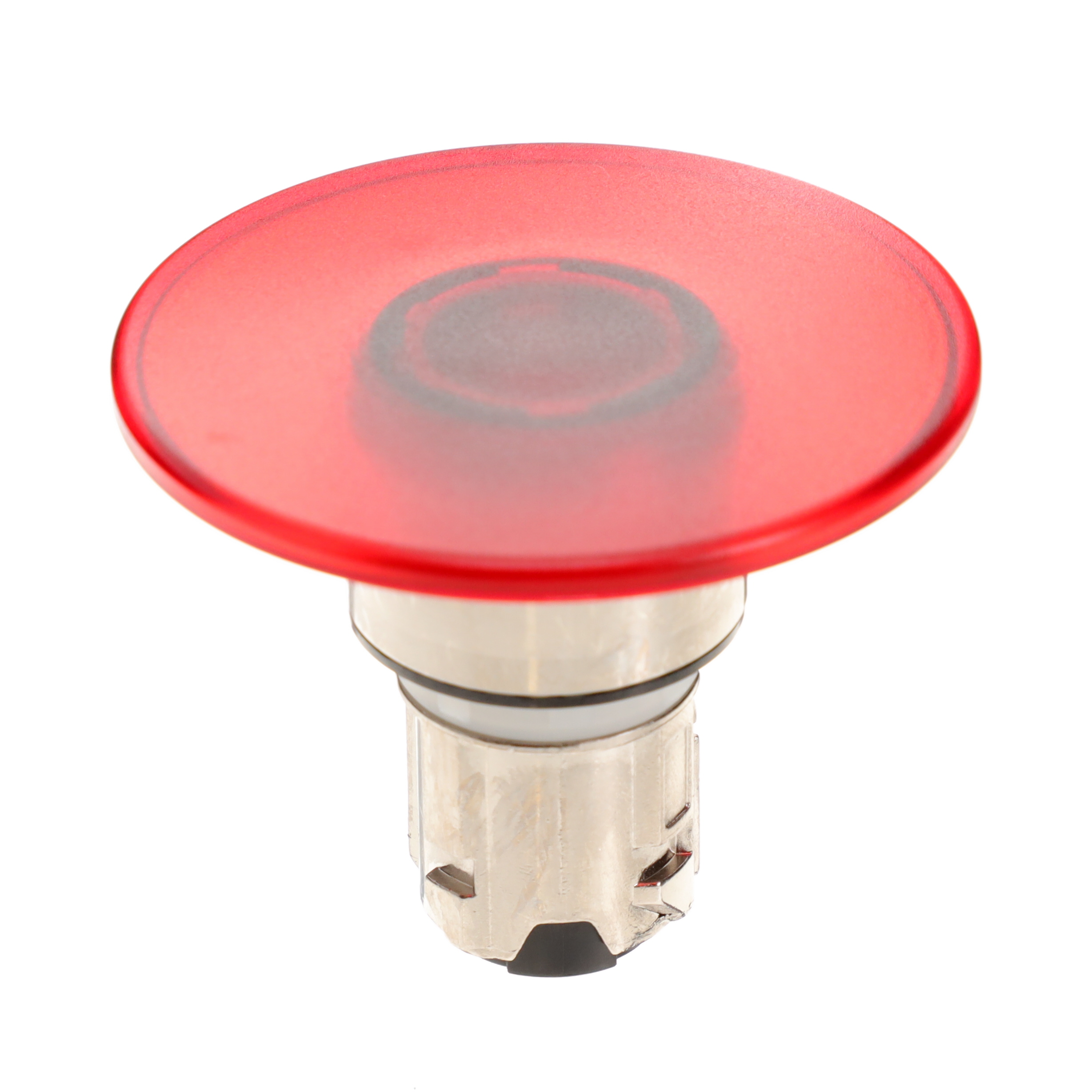

MUSHROOM-HEAD PUSHBUTTON ACTUATOR ILLUMINATED RED TRANSPARENT D60 MAINTAIN FRONT/HOUSING METAL

Search across all available documentation for this part.

Active

EAO

MUSHROOM-HEAD PUSHBUTTON ACTUATOR ILLUMINATED RED TRANSPARENT D60 MAINTAIN FRONT/HOUSING METAL

Technical Specifications

Parameters and characteristics for this part

Specification	45-2630.2AE0.000

(Select First, Then Apply Filters) Compatible Series	45, EAO
Actuator Type	Pushbutton, Mushroom
Panel Cutout Dimensions	22.3 mm
Requires	Illumination Source, Contact Block(s)
Type	Maintained

Part	Actuator Type	(Select First, Then Apply Filters) Compatible Series	Panel Cutout Dimensions	Requires	Type	Illumination
EAO 45-2630.29E0.000	Pushbutton Mushroom	45 EAO	22.3 mm	Contact Block(s) Illumination Source	Maintained
EAO 45-2630.28H0.000	Pushbutton Mushroom	45 EAO	22.3 mm	Contact Block(s) Illumination Source	Maintained	Illuminated - Green
EAO 45-2630.39E0.000	Pushbutton Mushroom	45 EAO	22.3 mm	Contact Block(s) Illumination Source	Maintained
EAO 45-2630.2AJ0.000	Pushbutton Mushroom	45 EAO	22.3 mm	Contact Block(s) Illumination Source	Maintained	Illuminated - Blue
EAO 45-2630.28F0.000	Pushbutton Mushroom	45 EAO	22.3 mm	Contact Block(s) Illumination Source	Maintained	Illuminated - Amber
EAO 45-2630.2AE0.000	Pushbutton Mushroom	45 EAO	22.3 mm	Contact Block(s) Illumination Source	Maintained
EAO 45-2630.28J0.000	Pushbutton Mushroom	45 EAO	22.3 mm	Contact Block(s) Illumination Source	Maintained	Illuminated - Blue
EAO 45-2630.2AH0.000	Pushbutton Mushroom	45 EAO	22.3 mm	Contact Block(s) Illumination Source	Maintained	Illuminated - Green
EAO 45-2630.29K0.000	Pushbutton Mushroom	45 EAO	22.3 mm	Contact Block(s) Illumination Source	Maintained	Illuminated
EAO 45-2630.2AK0.000	Pushbutton Mushroom	45 EAO	22.3 mm	Contact Block(s) Illumination Source	Maintained	Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Pushbutton, Mushroom Illuminated - Red
