895-014-542-208

Active

EDAC Inc.

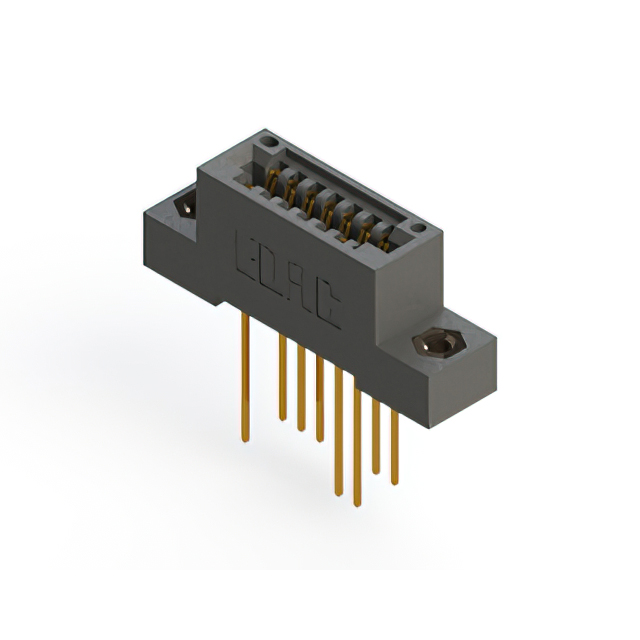

CARD EDGE CONNECTOR, 14 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, #4-40UNC, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-014-542-208

Active

EDAC Inc.

CARD EDGE CONNECTOR, 14 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, #4-40UNC, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-014-542-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	14
Number of Positions/Bay/Row [custom]	7
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

895-014 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Contact Finish	Read Out	Flange Feature	Termination Rows	Contact Type	Card Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Color	Contact Material	Flange Feature	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 895-014-542-208	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Gold	Dual	4-40 Flush Mount Threaded Insert Top Opening	2	Cantilever	Non Specified - Dual Edge	2	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Wire Wrap	7	2.54 mm	0.1 in	14	Through Hole	Black	Copper Alloy
EDAC Inc. 895-014-542-402	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Gold	Single		1	Cantilever	Non Specified - Single Edge	1	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Wire Wrap	14	2.54 mm	0.1 in	14	Through Hole	Black	Copper Alloy	3.25 mm	0.128 in
EDAC Inc. 895-014-558-101	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Gold	Single		1	Cantilever	Non Specified - Single Edge	1	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Solder	14	2.54 mm	0.1 in	14	Through Hole Right Angle	Black	Copper Alloy
EDAC Inc. 895-014-556-502	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Gold	Dual		2	Cantilever	Non Specified - Dual Edge	2	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Solder	7	2.54 mm	0.1 in	14	Board Edge Straddle Mount	Black	Copper Alloy	3.25 mm	0.128 in	Card Extender
EDAC Inc. 895-014-544-102	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Gold	Single	Flush Mount Top Opening Unthreaded	1	Cantilever	Non Specified - Single Edge	1	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Wire Wrap	14	2.54 mm	0.1 in	14	Through Hole	Black	Copper Alloy				3.25 mm	0.128 "
EDAC Inc. 895-014-556-202	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Gold	Dual	Flush Mount Top Opening Unthreaded	2	Cantilever	Non Specified - Dual Edge	2	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Solder	7	2.54 mm	0.1 in	14	Board Edge Straddle Mount	Black	Copper Alloy			Card Extender	3.25 mm	0.128 "
EDAC Inc. 895-014-559-612	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Gold	Single	Side Mount Opening Unthreaded	1	Cantilever	Non Specified - Single Edge	1	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Solder	14	2.54 mm	0.1 in	14	Through Hole Right Angle	Black	Copper Alloy	3.25 mm	0.128 in
EDAC Inc. 895-014-558-803	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Gold	Dual	Floating Bobbin Top Mount Opening	2	Cantilever	Non Specified - Dual Edge	2	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Solder	7	2.54 mm	0.1 in	14	Through Hole Right Angle	Black	Copper Alloy				2.95 mm	0.116 in
EDAC Inc. 895-014-525-504	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Gold	Dual	Top Mount Opening Unthreaded	2	Cantilever	Non Specified - Dual Edge	2	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Solder	7	2.54 mm	0.1 in	14	Through Hole	Black	Copper Alloy				3.96 mm	0.156 in
EDAC Inc. 895-014-540-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Gold	Single	Floating Bobbin Flush Mount	1	Cantilever	Non Specified - Single Edge	1	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Wire Wrap	14	2.54 mm	0.1 in	14	Through Hole	Black	Copper Alloy				2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 57.49
Newark	Each	1	$ 69.00
		100	$ 43.64
		250	$ 38.45
		500	$ 34.36
		1000	$ 25.75

Description

General part information

895-014 Series

14 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black

Documents

Technical documentation and resources
