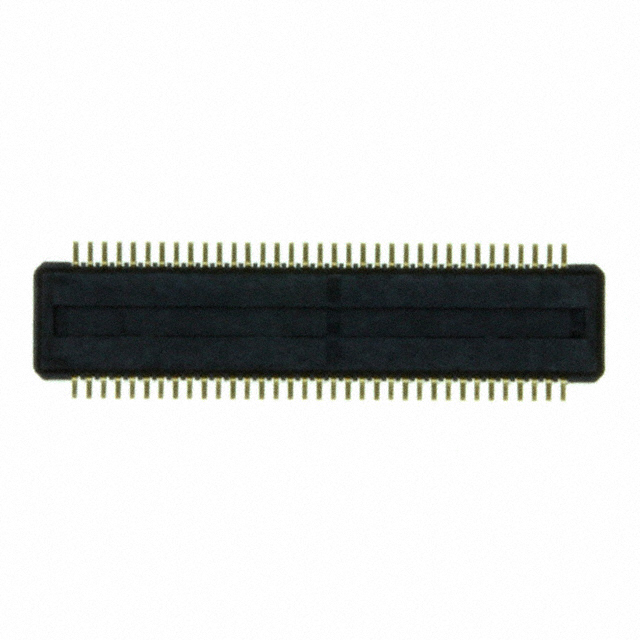

145846070000829+
ActiveKyocera AVX
STACKING BOARD CONNECTOR, AMPMODU 50/50 GRID SERIES, 70 CONTACTS, PLUG, 0.4 MM, SURFACE MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 145846070000829+ |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Height Above Board [z] | 0.093 in |
| Height Above Board [z] | 2.35 mm |
| Mated Stacking Heights | 3 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 70 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
145846 Series
70 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
