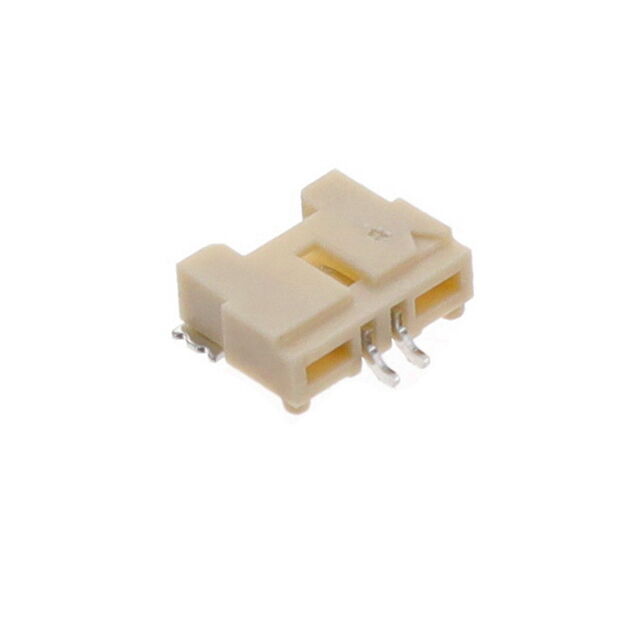

125SH-D-02-TR-SMT-T/R

Active

Adam Tech

CONN HDR SMD R/A 2POS 1.25MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HDR SMD R/A 2POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	125SH-D-02-TR-SMT-T/R

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Solder Retention, Board Guide
Insulation Color	Natural
Insulation Height	0.134 in
Insulation Height	3.4 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	100 VAC

Part	Number of Positions Loaded	Contact Finish - Post	Termination	Insulation Material	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Material	Material Flammability Rating	Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Features	Insulation Height	Insulation Height	Mounting Type	Insulation Color	Connector Type	Contact Shape	Contact Type	Fastening Type	Shrouding	Number of Positions
Adam Tech 125SH-D-05-TR-SMT-T/R	All	Tin	Solder	Thermoplastic	1.25 mm	0.049 in	100 VAC	Brass	UL94 V-0	Board to Board Cable	85 °C	-40 °C	1	Board Guide Solder Retention	0.134 in	3.4 mm	Surface Mount Right Angle	Natural	Header	Rectangular	Male Pin	Friction Lock	Shrouded - 4 Wall
Adam Tech 125SH-D-02-TR-SMT-T/R	All	Tin	Solder	Thermoplastic	1.25 mm	0.049 in	100 VAC	Brass	UL94 V-0	Board to Board Cable	85 °C	-40 °C	1	Board Guide Solder Retention	0.134 in	3.4 mm	Surface Mount Right Angle	Natural	Header	Rectangular	Male Pin	Friction Lock	Shrouded - 4 Wall	2
