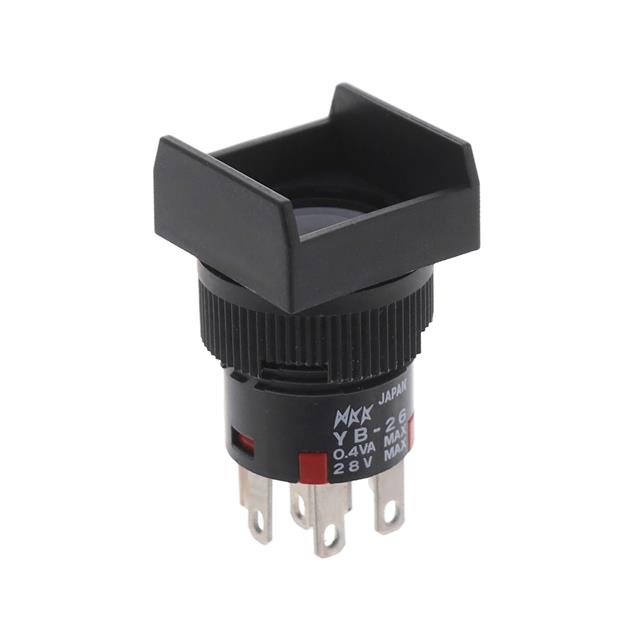

YB26SKG01

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB26SKG01

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB26SKG01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

YB26SK Series

Part	Actuator Marking	Voltage Rating - DC	Electrical Life	Actuator Type	Current Rating (Amps)	Color - Actuator/Cap	Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Illumination Type, Color	Mounting Type	Features	Mechanical Life	Switch Function	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Voltage Rating - AC	Termination Style	Termination Style
NKK Switches YB26SKW03-5F05-JF	No Marking	30 V	100000 Cycles	Button Square	3 A	Clear	Illuminated Standard	DPDT	50 °C	-25 °C	PC Pin	Green LED	Panel Mount Front	Voltage Reduction Lighting	200000 Cycles	On-On	16 mm	5 VDC	125 V
NKK Switches YB26SKG01	No Marking	28 V	100000 Cycles	Plunger for Cap	0.4 VA		Standard	DPDT	70 °C	-25 °C	Quick Connect Solder		Panel Mount Front	Voltage Reduction Lighting	200000 Cycles	On-On	16 mm		28 V	0.11 in	2.8 mm
NKK Switches YB26SKW01-5F-JB	No Marking	30 V	100000 Cycles	Button Square	3 A	Clear	Illuminated Standard	DPDT	50 °C	-25 °C	Quick Connect Solder	Green LED	Panel Mount Front	Voltage Reduction Lighting	200000 Cycles	On-On	16 mm	2.2 VDC	125 V	0.11 in	2.8 mm
NKK Switches YB26SKW03	No Marking	30 V	100000 Cycles	Plunger for Cap	3 A		Standard	DPDT	70 °C	-25 °C	PC Pin		Panel Mount Front	Voltage Reduction Lighting	200000 Cycles	On-On	16 mm		125 V
NKK Switches YB26SKW01-5D12-JD	No Marking	30 V	100000 Cycles	Button Square	3 A	Clear	Illuminated Standard	DPDT	50 °C	-25 °C	Quick Connect Solder	Amber LED	Panel Mount Front	Voltage Reduction Lighting	200000 Cycles	On-On	16 mm	12 VDC	125 V	0.11 in	2.8 mm
NKK Switches YB26SKW01-6B-JB	No Marking	30 V	100000 Cycles	Button Square	3 A	Clear	Illuminated Standard	DPDT	50 °C	-25 °C	Quick Connect Solder	LED White	Panel Mount Front	Voltage Reduction Lighting	200000 Cycles	On-On	16 mm	3.3 VDC	125 V	0.11 in	2.8 mm
NKK Switches YB26SKW01-5D24-JB	No Marking	30 V	100000 Cycles	Button Square	3 A	Clear	Illuminated Standard	DPDT	50 °C	-25 °C	Quick Connect Solder	Amber LED	Panel Mount Front	Voltage Reduction Lighting	200000 Cycles	On-On	16 mm	24 V	125 V	0.11 in	2.8 mm
NKK Switches YB26SKW01-2CF05-JB	No Marking	30 V	100000 Cycles	Button Square	3 A	Clear	Illuminated Standard	DPDT	50 °C	-25 °C	Quick Connect Solder	Green/Red LED	Panel Mount Front	Voltage Reduction Lighting	200000 Cycles	On-On	16 mm	5 VDC	125 V	0.11 in	2.8 mm
NKK Switches YB26SKW01-1F24-JF	No Marking	30 V	100000 Cycles	Button Square	3 A	Clear	Illuminated Standard	DPDT	50 °C	-25 °C	Quick Connect Solder	Green LED	Panel Mount Front	Voltage Reduction Lighting	200000 Cycles	On-On	16 mm	24 V	125 V	0.11 in	2.8 mm
NKK Switches YB26SKW01-GB	No Marking	30 V	100000 Cycles	Button Square	3 A	Blue	Standard	DPDT	70 °C	-25 °C	Quick Connect Solder		Panel Mount Front	Voltage Reduction Lighting	200000 Cycles	On-On	16 mm		125 V	0.11 in	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.31
		10	$ 14.07
		25	$ 13.27
		50	$ 12.69
		100	$ 12.14
		250	$ 11.44
		500	$ 10.94
Newark	Each	1	$ 32.02
		5	$ 30.41
		10	$ 28.18
		25	$ 25.71
		50	$ 22.25
		100	$ 20.77
		250	$ 18.91

Description

General part information

YB26SK Series

Pushbutton Switch DPDT Standard Panel Mount, Front
