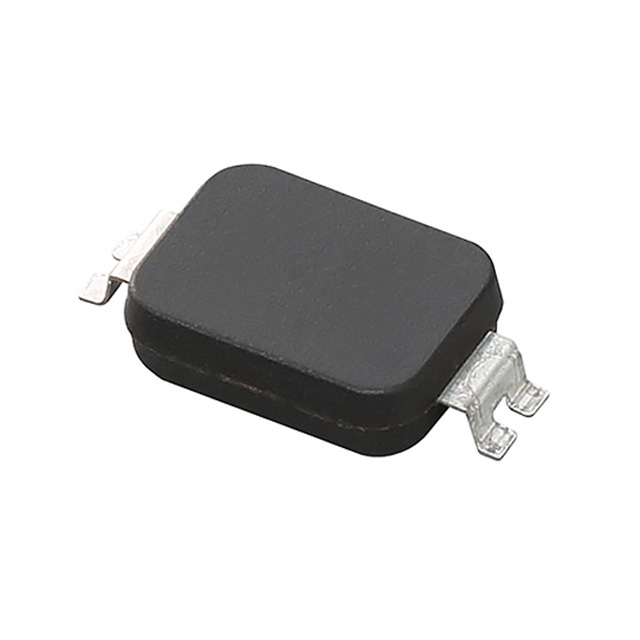

DK1B3EA471K86RBH01
ActiveMurata Power Solutions Inc.
CAP CER 470PF 300V NONSTND SMD
Deep-Dive with AI
Search across all available documentation for this part.
DK1B3EA471K86RBH01
ActiveMurata Power Solutions Inc.
CAP CER 470PF 300V NONSTND SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DK1B3EA471K86RBH01 |
|---|---|
| Applications | Safety |
| Capacitance | 470 pF |
| Lead Style | Gull Wing |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard SMD |
| Ratings | Y1, X1 |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [y] | 0.236 in |
| Size / Dimension [y] | 6 mm |
| Temperature Coefficient | B |
| Thickness (Max) [Max] | 0.098 in |
| Thickness (Max) [Max] | 2.5 mm |
| Tolerance | 10 % |
| Voltage - Rated | 300 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.68 | |
| 10 | $ 1.06 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.74 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.56 | |||
| Digi-Reel® | 1 | $ 1.68 | ||
| 10 | $ 1.06 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.74 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.56 | |||
| Tape & Reel (TR) | 2500 | $ 0.50 | ||
| 5000 | $ 0.48 | |||
| 12500 | $ 0.45 | |||
Description
General part information
DK1B3EA Series
470 pF ±10% 300VAC Ceramic Capacitor B Nonstandard SMD
