245101-01-48.00

Active

Amphenol RF

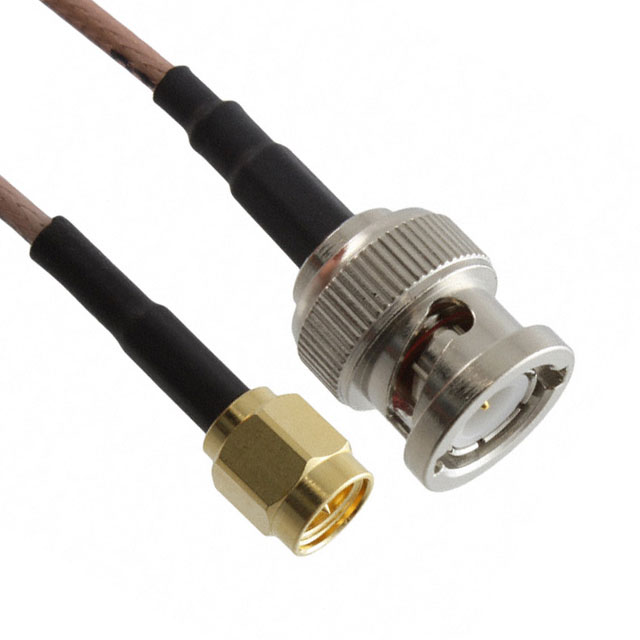

BNC STRAIGHT PLUG TO SMA STRAIGHT PLUG RG-316 50 OHM 48 INCHES (1219 MM)

Deep-Dive with AI

Search across all available documentation for this part.

245101-01-48.00

Active

Amphenol RF

BNC STRAIGHT PLUG TO SMA STRAIGHT PLUG RG-316 50 OHM 48 INCHES (1219 MM)

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	245101-01-48.00

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Features	Shielded
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	BNC to SMA

245101 Series

Part	2nd Connector Mounting Type	2nd Contact Gender	1st Contact Gender	Cable Type	1st Connector Mounting Type	2nd Connector	Frequency - Max [Max]	Overall Impedance	Cable Impedance	Style	Color	Features	1st Connector	Length	Length	Length	Length [x]	Length [x]
Amphenol RF 245101-04-60.00	Free Hanging (In-Line)	Male	Male	RG-58	Free Hanging (In-Line)	SMA Plug	1 GHz	50 Ohms	50 Ohms	BNC to SMA	Black	Shielded	BNC Plug	5 ft	1.5 m	5 '
Amphenol RF 245101-07-36.00	Free Hanging (In-Line)	Male	Male	RG-142	Free Hanging (In-Line)	SMA Plug		50 Ohms	50 Ohms	BNC to SMA	Copper	Shielded	BNC Plug		91.44 cm	36 in
Amphenol RF 245101-01-48.00	Free Hanging (In-Line)	Male	Male	RG-316	Free Hanging (In-Line)	SMA Plug		50 Ohms	50 Ohms	BNC to SMA	Copper	Shielded	BNC Plug	4 ft	1200 mm	48 in
Amphenol RF 245101-01-18.00	Free Hanging (In-Line)	Male	Male	RG-316	Free Hanging (In-Line)	SMA Plug		50 Ohms	50 Ohms	BNC to SMA	Copper	Shielded	BNC Plug				457.2 mm	457.2 mm
Amphenol RF 245101-01-06.00	Free Hanging (In-Line)	Male	Male	RG-316	Free Hanging (In-Line)	SMA Plug		50 Ohms	50 Ohms	BNC to SMA	Copper	Shielded	BNC Plug		152.4 mm	6 in
Amphenol RF 245101-07-48.00	Free Hanging (In-Line)	Male	Male	RG-142	Free Hanging (In-Line)	SMA Plug		50 Ohms	50 Ohms	BNC to SMA	Copper	Shielded	BNC Plug	4 ft	1200 mm	48 in
Amphenol RF 245101-04-M2.00	Free Hanging (In-Line)	Male	Male	RG-58	Free Hanging (In-Line)	SMA Plug	1 GHz	50 Ohms	50 Ohms	BNC to SMA	Black	Shielded	BNC Plug	6.6 ft	2 m	78.7 in
Amphenol RF 245101-04-96.00	Free Hanging (In-Line)	Male	Male	RG-58	Free Hanging (In-Line)	SMA Plug	1 GHz	50 Ohms	50 Ohms	BNC to SMA	Black	Shielded	BNC Plug	8 '	2.4 m	96 "
Amphenol RF 245101-01-36.00	Free Hanging (In-Line)	Male	Male	RG-316	Free Hanging (In-Line)	SMA Plug		50 Ohms	50 Ohms	BNC to SMA	Copper	Shielded	BNC Plug		91.44 cm	36 in
Amphenol RF 245101-04-120	Free Hanging (In-Line)	Male	Male	RG-58	Free Hanging (In-Line)	SMA Plug	1 GHz	50 Ohms	50 Ohms	BNC to SMA	Black	Shielded	BNC Plug	10 '	3 m	10 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 32.74
		10	$ 25.28
		25	$ 22.91
		50	$ 21.30
		100	$ 19.85
		250	$ 18.14
		500	$ 16.99
Newark	Each	25	$ 25.72
		50	$ 23.99
		100	$ 23.21
		250	$ 21.96

Description

General part information

245101 Series

Cable Assembly Coaxial BNC to SMA RG-316 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources

No documents available
