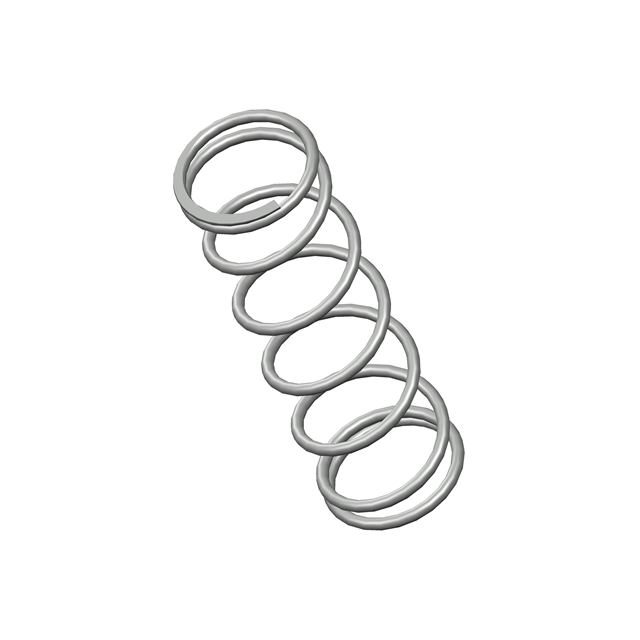

B10-66CS
ActiveCentury Spring Corp
COMP O= .437,L= 1.44,W= .037
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B10-66CS
ActiveCentury Spring Corp
COMP O= .437,L= 1.44,W= .037
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B10-66CS |
|---|---|
| Diameter - Inside [diameter] | 0.363 in |
| Diameter - Inside [diameter] | 9.22 mm |
| Diameter - Outside [diameter] | 0.437 " |
| Diameter - Outside [diameter] | 11.1 mm |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 1.44 in |
| Free Length | 36.58 mm |
| Material | Spring Steel |
| Rate | 7.3 lbs/in |
| Wire Diameter [diameter] | 0.037 " |
| Wire Diameter [diameter] | 0.94 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.00 | |
| 50 | $ 2.85 | |||
| 150 | $ 2.70 | |||
| 300 | $ 2.55 | |||
| 500 | $ 2.25 | |||
Description
General part information
B10 Series
COMP O= .437,L= 1.44,W= .037
