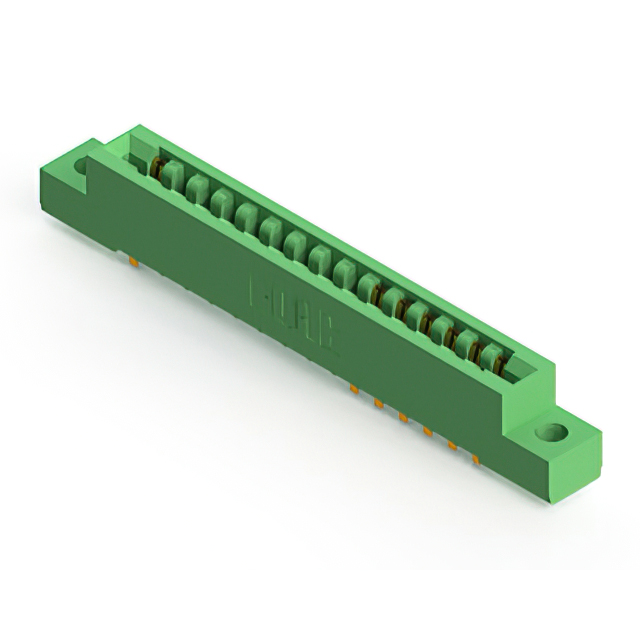

307-030-520-202

Active

EDAC Inc.

3.96MM 30P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Card Edge Brochure +1

307-030-520-202

Active

EDAC Inc.

3.96MM 30P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet Card Edge Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-030-520-202

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	30
Number of Positions/Bay/Row [custom]	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

307-030 Series

...

Part	Contact Finish	Termination Rows	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Contact Material	Termination	Contact Type	Card Type	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Positions/Bay/Row [custom]	Material - Insulation	Number of Rows	Color	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 307-030-558-178	Gold	1	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Solder	Semi Bellows	Non Specified - Single Edge	30	Through Hole Right Angle	0.156 in	3.96 mm	10 Áin	0.25 Ám	Single	30	Polyester Thermoplastic	1	Green
EDAC Inc. 307-030-459-158	Tin	1	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Solder	Semi Bellows	Non Specified - Single Edge	30	Through Hole Right Angle	0.156 in	3.96 mm			Single	30	Polyester Thermoplastic	1	Green
EDAC Inc. 307-030-556-204	Gold	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	Copper Alloy	Solder	Semi Bellows	Non Specified - Dual Edge	30	Board Edge Straddle Mount	0.156 in	3.96 mm	10 Áin	0.25 Ám	Dual	15	Polyester Thermoplastic	2	Green	3.96 mm	0.156 in
EDAC Inc. 307-030-520-202	Gold	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in		-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	Copper Alloy	Solder	Semi Bellows	Non Specified - Dual Edge	30	Through Hole	0.156 in	3.96 mm	10 Áin	0.25 Ám	Dual	15	Polyester Thermoplastic	2	Green	3.25 mm	0.128 "
EDAC Inc. 307-030-520-212	Gold	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in		-40 °C	105 ░C	Flush Mount Side Opening Unthreaded	Copper Alloy	Solder	Semi Bellows	Non Specified - Dual Edge	30	Through Hole	0.156 in	3.96 mm	10 Áin	0.25 Ám	Dual	15	Polyester Thermoplastic	2	Green	3.25 mm	0.128 "
EDAC Inc. 307-030-558-212	Gold	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in		-40 °C	105 ░C	Flush Mount Side Opening Unthreaded	Copper Alloy	Solder Wire Wrap	Semi Bellows	Non Specified - Dual Edge	30	Through Hole Right Angle	0.156 in	3.96 mm	10 Áin	0.25 Ám	Dual	15	Polyester Thermoplastic	2	Green	3.25 mm	0.128 "
EDAC Inc. 307-030-455-202	Tin	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	Copper Alloy	Solder Eyelet(s)	Semi Bellows	Non Specified - Dual Edge	30	Board Edge Straddle Mount	0.156 in	3.96 mm			Dual	15	Polyester Thermoplastic	2	Green	3.25 mm	0.128 "
EDAC Inc. 307-030-455-201	Tin	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender	-40 °C	105 ░C		Copper Alloy	Solder Eyelet(s)	Semi Bellows	Non Specified - Dual Edge	30	Board Edge Straddle Mount	0.156 in	3.96 mm			Dual	15	Polyester Thermoplastic	2	Green
EDAC Inc. 307-030-558-107	Gold	1	Female	1.37 mm	0.054 "	1.78 mm	0.07 in		-40 °C	105 ░C	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Solder	Semi Bellows	Non Specified - Single Edge	30	Through Hole Right Angle	0.156 in	3.96 mm	10 Áin	0.25 Ám	Single	30	Polyester Thermoplastic	1	Green
EDAC Inc. 307-030-425-101	Tin	1	Female	1.37 mm	0.054 "	1.78 mm	0.07 in		-40 °C	105 ░C		Copper Alloy	Solder	Semi Bellows	Non Specified - Single Edge	30	Through Hole	0.156 in	3.96 mm			Single	30	Polyester Thermoplastic	1	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.02
		10	$ 9.23
		25	$ 8.34
		50	$ 7.74
		100	$ 7.19
		250	$ 6.55
		500	$ 6.11
		1000	$ 5.72
LCSC	Piece	1	$ 2.67
		200	$ 1.04
		500	$ 1.00
		1000	$ 0.98

Description

General part information

307-030 Series

30 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
