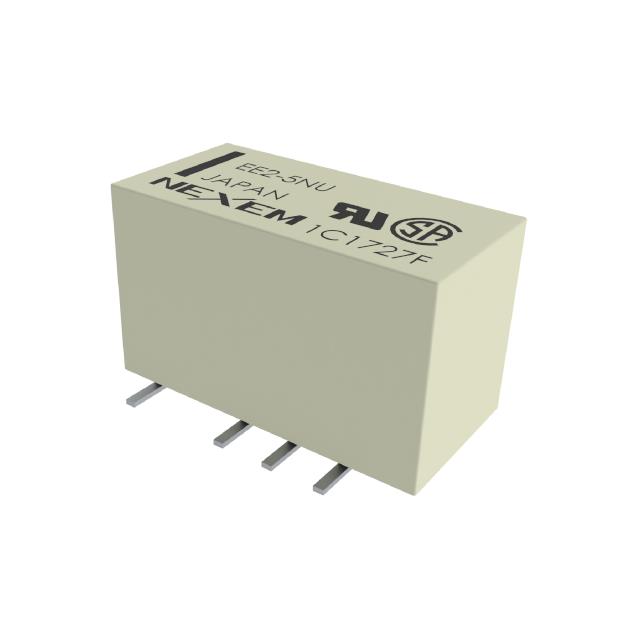

EE2-3SNU

Active

KEMET

RELAY GENERAL PURPOSE DPDT 2A 3V

Search across all available documentation for this part.

Active

KEMET

RELAY GENERAL PURPOSE DPDT 2A 3V

Technical Specifications

Parameters and characteristics for this part

Part	Release Time	Mounting Type	Coil Type	Load - Max Switching	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Approval Agency	Termination Style	Contact Rating (Current)	Relay Type	Contact Material	Must Operate Voltage	Switching Voltage	Coil Resistance	Contact Form	Operate Time
KEMET EE2-3SNU-L	1 ms	Surface Mount	Latching Single Coil	440 W 500 VA	85 °C	-40 °C	33.3 mA	CSA TUV UL	Gull Wing	2 A	General Purpose	Gold Alloy Silver Alloy	2.25 VDC	220 VDC 250 VAC	90 Ohms	DPDT (2 Form C)	2 ms
KEMET EE2-3SNUH-L	1 ms	Surface Mount	Latching Single Coil	440 W 500 VA	85 °C	-40 °C	33.3 mA	CSA TUV UL	Gull Wing	2 A	General Purpose	Gold Alloy Silver Alloy	2.25 VDC	220 VDC 250 VAC	90 Ohms	DPDT (2 Form C)	2 ms
KEMET EE2-3SNU	1 ms	Surface Mount	Latching Single Coil	440 W 500 VA	85 °C	-40 °C	33.3 mA	CSA TUV UL	Gull Wing	2 A	General Purpose	Gold Alloy Silver Alloy	2.25 VDC	220 VDC 250 VAC	90 Ohms	DPDT (2 Form C)	2 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	3360	$ 1.67
Newark	Each	2500	$ 1.60

General part information

General Purpose Relay DPDT (2 Form C) Surface Mount
