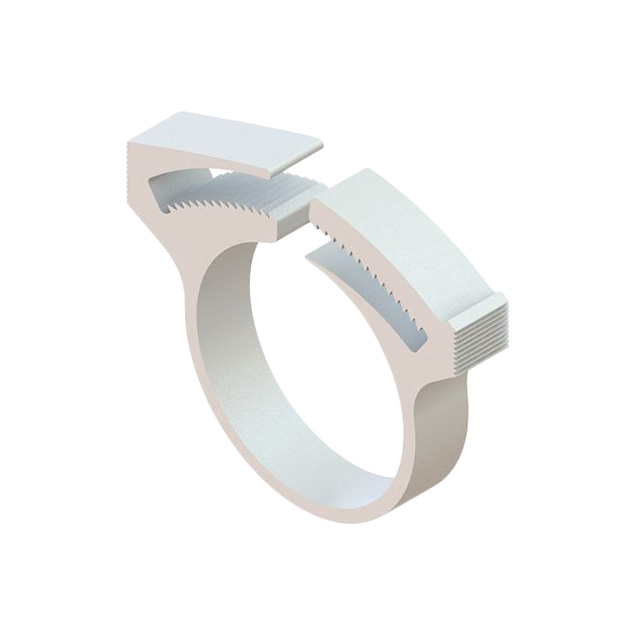

SHC-50

Active

Essentra Access Solutions

CBL CLAMP HOSE WHITE

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLAMP HOSE WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	SHC-50

Color	White
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 HB
Material Thickness	0.07 in
Material Thickness	1.78 mm
Opening Size [Max] [z]	22.22 mm
Opening Size [Max] [z]	0.875 in
Opening Size [Min] [z]	0.75 in
Opening Size [Min] [z]	19.05 mm
Type	Clamp, Hose
Width [x]	0.22 in
Width [x]	5.59 mm

Part	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Material Thickness	Material Thickness	Material Flammability Rating	Type	Color	Width [x]	Width [x]	Material	Width [y]	Width [y]	Opening Size [Min]	Opening Size [Max]	Opening Size [Min] [diameter]	Opening Size [Max] [diameter]	Opening Size [Min] [diameter]	Opening Size [Max] [diameter]
Essentra Access Solutions SHC-50	22.22 mm	0.75 in	0.875 in	19.05 mm	0.07 in	1.78 mm	UL94 HB	Clamp Hose	White	0.22 in	5.59 mm	Polyamide (PA66) Nylon 6/6
Essentra Access Solutions SHC-92		1.406 in	1.625 in		0.07 in	1.78 mm	UL94 HB	Clamp Hose	White			Polyamide (PA66) Nylon 6/6	0.36 in	9.14 mm	35.71 mm	41.28 mm
Essentra Access Solutions SHC-68					0.07 in	1.78 mm	UL94 HB	Clamp Hose	White	0.31 in	7.87 mm	Polyamide (PA66) Nylon 6/6					1.031 in	30.18 mm	26.19 mm	1.188 in
Essentra Access Solutions SHC-62	27.79 mm	0.953 in	1.094 in	24.21 mm	0.07 in	1.78 mm	UL94 HB	Clamp Hose	White	0.31 in	7.87 mm	Polyamide (PA66) Nylon 6/6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clamp, Hose White 0.750" ~ 0.875" (19.05mm ~ 22.22mm)
