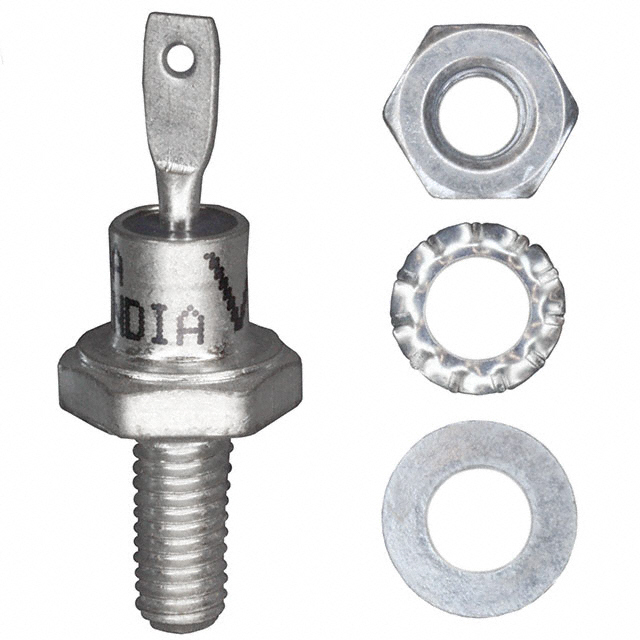

VS-1N1204A

Active

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 400V 12A DO203AA

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 400V 12A DO203AA

Technical Specifications

Parameters and characteristics for this part

Specification	VS-1N1204A

Current - Average Rectified (Io)	12 A
Current - Reverse Leakage @ Vr	1.5 mA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Stud, DO-203AA, DO-4
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-203AA
Supplier Device Package	DO-4
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.35 V

Part	Technology	Mounting Type	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Supplier Device Package	Speed	Speed	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr
Vishay General Semiconductor - Diodes Division VS-1N1204A	Standard	Chassis Stud Mount	12 A	1.35 V	400 V	DO-203AA	DO-4	Standard Recovery >500ns	200 mA	DO-203AA DO-4 Stud	200 C	-65 C	1.5 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 400 V 12A Chassis, Stud Mount DO-203AA (DO-4)
