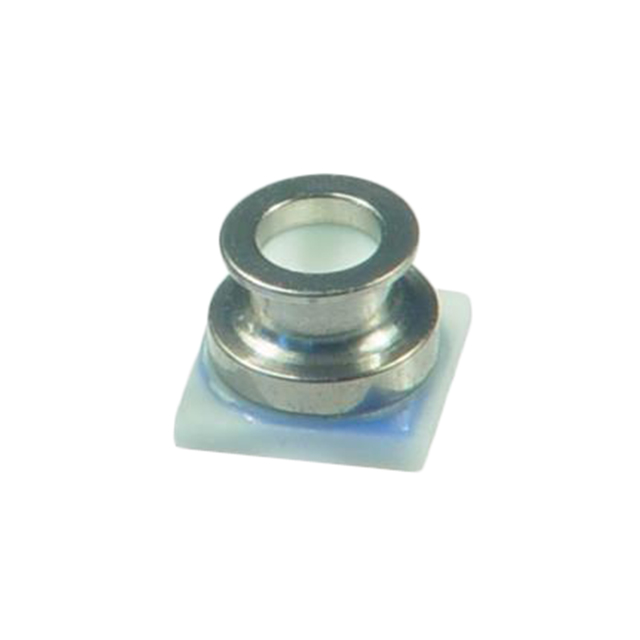

MS583702BA06-50

Obsolete

TE Connectivity Measurement Specialties

SENSOR 17.4PSIA 24BIT

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR 17.4PSIA 24BIT

Technical Specifications

Parameters and characteristics for this part

Part	Features	Mounting Type	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Min]	Operating Pressure [Max]	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Accuracy	Accuracy	Output	Applications	Port Style	Maximum Pressure	Maximum Pressure	Package / Case
TE Connectivity Measurement Specialties MS583702BA26-50	Temperature Compensated	Surface Mount	17.4 PSI	30 kPa	4.35 PSI	120 kPa	SMD (SMT) Tab	3.6 V	1.5 V	85 °C	-20 C	I2C	0.007 PSI	0.05 kPa	24 b	Board Mount	No Port	1000 kPa	145.04 PSI	4-SMD Module
TE Connectivity Measurement Specialties MS583702BA06-50	Temperature Compensated	Surface Mount	17.4 PSI	30 kPa	4.35 PSI	120 kPa	SMD (SMT) Tab	3.6 V	1.5 V	85 °C	-20 C	I2C	0.007 PSI	0.05 kPa	24 b	Board Mount	No Port	1000 kPa	145.04 PSI	4-SMD Module
TE Connectivity Measurement Specialties MS583702BA01-50	Temperature Compensated	Surface Mount	17.4 PSI	30 kPa	4.35 PSI	120 kPa	SMD (SMT) Tab	3.6 V	1.5 V	85 °C	-20 C	I2C	0.007 PSI	0.05 kPa	24 b	Board Mount	No Port	1000 kPa	145.04 PSI	4-SMD Module
TE Connectivity Measurement Specialties MS5837-02BA21	Temperature Compensated	Surface Mount	17.4 PSI	30 kPa	4.35 PSI	120 kPa	SMD (SMT) Tab	3.6 V	1.5 V	85 °C	-20 C	I2C	0.007 PSI	0.05 kPa	24 b	Board Mount	No Port	1000 kPa	145.04 PSI	4-SMD Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 4.35PSI ~ 17.4PSI (30kPa ~ 120kPa) Absolute 24 b 4-SMD Module
