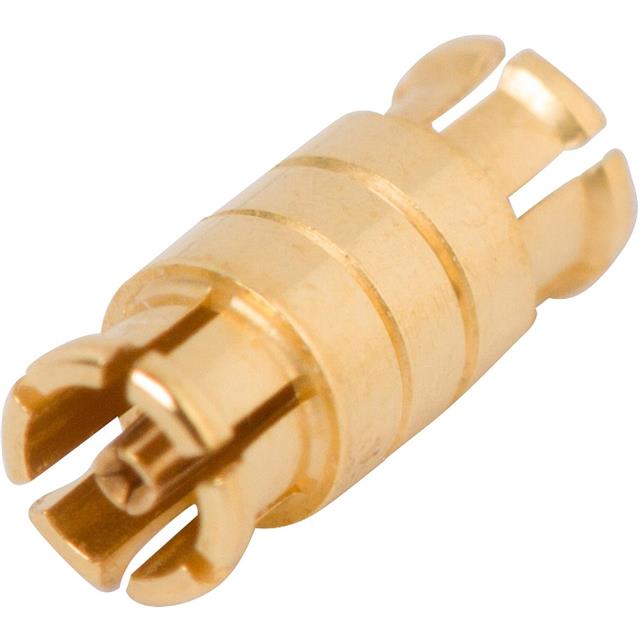

1138-4003

Active

Amphenol SV Microwave

CONN ADAPT JACK-JACK SMPS 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN ADAPT JACK-JACK SMPS 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1138-4003

Adapter Series	SMPS to SMPS
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMPS Jack
Convert To (Adapter End)	SMPS Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Body Finish	Dielectric Material	Center Contact Plating	Center Gender	Mounting Type	Adapter Type	Fastening Type	Adapter Series	Center Contact Material	Body Material	Convert From (Adapter End)	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Style	Conversion Type	Impedance
Amphenol SV Microwave 1138-4003	Gold	Polytetrafluoroethylene (PTFE)	Gold	Female to Female	Free Hanging (In-Line)	Jack to Jack	Snap-On	SMPS to SMPS	Beryllium Copper	Beryllium Copper	Female Socket SMPS Jack	Female Socket SMPS Jack	165 °C	-55 °C	Straight	Same Series	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMPS Jack, Female Socket To SMPS Jack, Female Socket 50 Ohms
