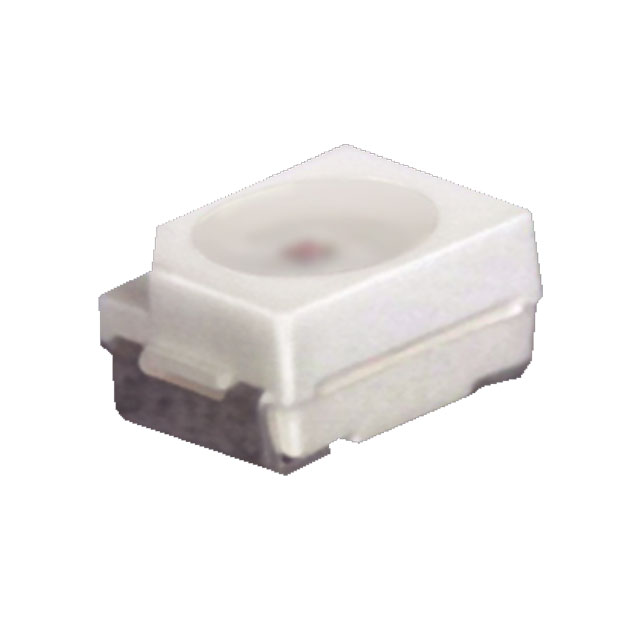

SML-Z14PTT86C
ActiveRohm Semiconductor
AUTOMOTIVE, HIGH BRIGHTNESS REFLECTOR TYPE, GREEN CHIP LED
Deep-Dive with AI
Search across all available documentation for this part.
SML-Z14PTT86C
ActiveRohm Semiconductor
AUTOMOTIVE, HIGH BRIGHTNESS REFLECTOR TYPE, GREEN CHIP LED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-Z14PTT86C |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Grade | Automotive |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 22.4 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Qualification | AEC-Q101 |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 1411 |
| Supplier Device Package | 3528 |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 560 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.74 | |
| 10 | $ 0.49 | |||
| 100 | $ 0.32 | |||
| 1000 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.74 | ||
| 10 | $ 0.49 | |||
| 100 | $ 0.32 | |||
| 1000 | $ 0.25 | |||
| Tape & Reel (TR) | 2000 | $ 0.22 | ||
| 6000 | $ 0.21 | |||
| 10000 | $ 0.20 | |||
| 50000 | $ 0.19 | |||
Description
General part information
SML-Z14PT(C) Series
SML-Z1(C) series is an Automotive grade reflector high brightness surface mount type chip LED that complies with AEC-Q101.
