28631006RP2

Active

MH Connectors

28631006RP2 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

28631006RP2 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	28631006RP2

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.17 in
Insulation Height	4.32 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

Part	Contact Finish Thickness - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Mating	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Mounting Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Number of Positions Loaded	Contact Shape	Fastening Type	Termination	Contact Finish - Post	Insulation Material	Connector Type	Number of Positions
MH Connectors 28631006RP2	Flash	UL94 V-0	-40 °C	105 ░C	Phosphor Bronze	Gold	0.17 in	4.32 mm	0.079 in	2 mm	Female Socket	Surface Mount	Black	2.54 µm	100 µin	1	All	Square	Push-Pull	Solder	Tin	Nylon 6T Polyamide (PA6T)	Receptacle	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

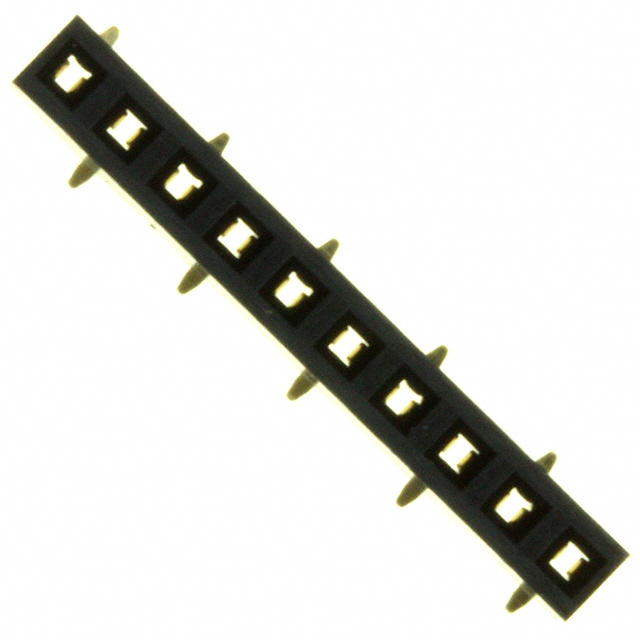

10 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
