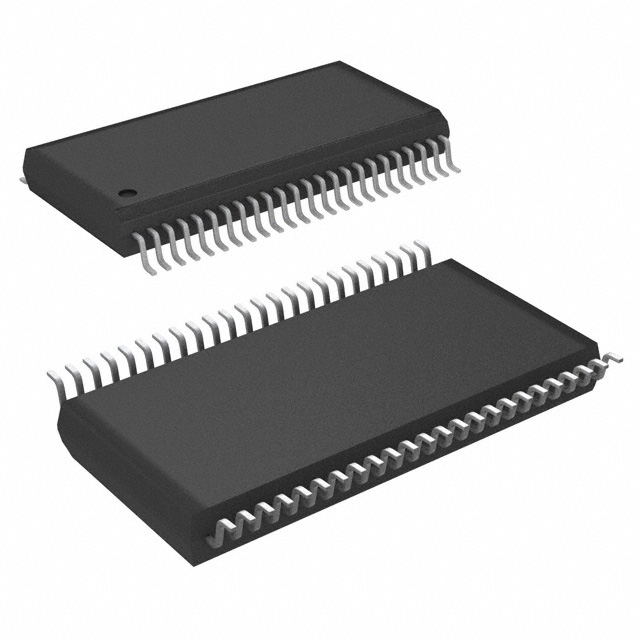

74FCT163244CPFG8

Obsolete

Renesas Electronics Corporation

IC BUF NON-INVERT 3.6V 48TVSOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 74FCT163244 Datasheet

74FCT163244CPFG8

Obsolete

Renesas Electronics Corporation

IC BUF NON-INVERT 3.6V 48TVSOP

Deep-Dive with AI

DocumentsDatasheet 74FCT163244 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	74FCT163244CPFG8

Current - Output High, Low [custom]	8 mA
Current - Output High, Low [custom]	24 mA
Logic Type	Buffer, Non-Inverting
Mounting Type	Surface Mount
Number of Bits per Element	4
Number of Elements	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	3-State
Package / Case	0.173 in, 4.4 mm
Package / Case	48-TFSOP
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V

74FCT163244 Series

3.3V 16-Bit Buffer/Line Driver

Part	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Bits per Element	Number of Elements	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case [y]	Package / Case	Package / Case [y]	Logic Type	Package / Case	Package / Case [custom]
Renesas Electronics Corporation 74FCT163244CPVG	48-SSOP	2.7 V	3.6 V	4	4	3-State	85 °C	-40 °C	Surface Mount	8 mA	24 mA	0.295 in	48-BSSOP	7.5 mm	Buffer Non-Inverting
Renesas Electronics Corporation 74FCT163244APAG8	48-TSSOP	2.7 V	3.6 V	4	4	3-State	85 °C	-40 °C	Surface Mount	8 mA	24 mA		48-TFSOP		Buffer Non-Inverting	0.24 in	6.1 mm
Renesas Electronics Corporation 74FCT163244CPFG8		2.7 V	3.6 V	4	4	3-State	85 °C	-40 °C	Surface Mount	8 mA	24 mA		48-TFSOP		Buffer Non-Inverting	0.173 in 4.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

74FCT163244 Series

The 74FCT163244 16-bit high-speed, low-power buffer/line drivers offer bus/backplane interface capability with improved packing density. The three-state controls operate these devices in a Quad-Nibble, Dual-Byte, or single 16-bit word mode. The inputs can be driven from either 3.3V or 5V devices allowing the use of these devices as translators in a mixed 3.3V/5V supply system. Thus, the 74FCT163244 can be used as buffers to connect 5V components to a 3.3V bus. The device operates at -40 °C to +85 °C.
