M80-5320642

Active

Harwin Inc.

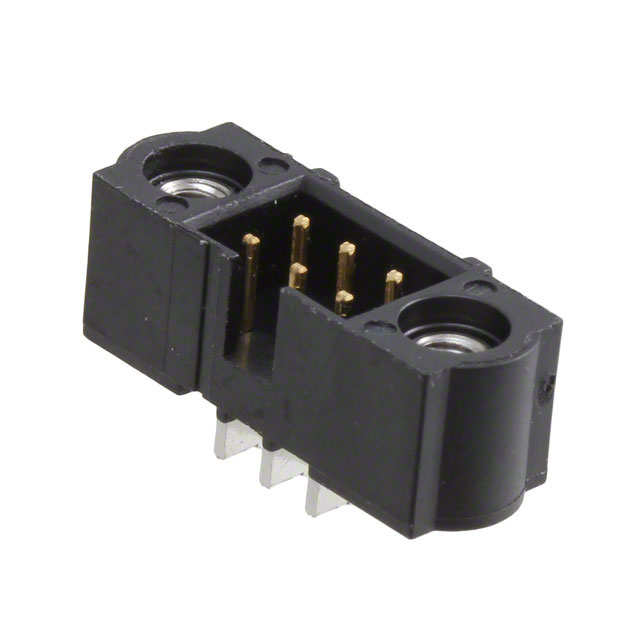

3+3 POS. MALE DIL HORIZONTAL SMT CONN. JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet M80-001 +2

M80-5320642

Active

Harwin Inc.

3+3 POS. MALE DIL HORIZONTAL SMT CONN. JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet M80-001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5320642

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Features	Keying Slot, Mating Flange
Insulation Color	Black
Insulation Height	0.218 in
Insulation Height	5.55 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-532 Series

Part	Connector Type	Number of Rows	Contact Finish - Mating	Insulation Material	Number of Positions Loaded	Insulation Height	Insulation Height	Voltage Rating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Shape	Features	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Material Flammability Rating	Contact Type	Current Rating (Amps)	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post
Harwin Inc. M80-5320642	Header	2	Gold	Polyphenylene Sulfide (PPS) Glass Filled	All	0.218 in	5.55 mm	800 V	Black	3 µm	118.1 µin	Board to Board Cable	Surface Mount Right Angle	29.5 Áin	0.75 Ám	Solder	Shrouded - 4 Wall	0.079 in	2 mm	6	Circular	Keying Slot Mating Flange	0.079 in	2 mm	Tin	UL94 V-0	Male Pin	2.2 A	Brass	-55 °C	125 °C
Harwin Inc. M80-5323442	Header	2	Gold	Polyphenylene Sulfide (PPS) Glass Filled	All	0.218 in	5.55 mm	800 V	Black	3 µm	118.1 µin	Board to Board Cable	Surface Mount Right Angle	29.5 Áin	0.75 Ám	Solder	Shrouded - 4 Wall	0.079 in	2 mm	34	Circular	Keying Slot Mating Flange	0.079 in	2 mm	Tin	UL94 V-0	Male Pin	2.2 A	Brass	-55 °C	125 °C
Harwin Inc. M80-5320842	Header	2	Gold	Polyphenylene Sulfide (PPS) Glass Filled	All	0.218 in	5.55 mm	800 VAC	Black	0.3 µm	12 µin	Board to Board Cable	Surface Mount Right Angle	29.5 Áin	0.75 Ám	Solder	Shrouded - 4 Wall	0.079 in	2 mm	8	Circular	Keying Slot Mating Flange	0.079 in	2 mm	Tin	UL94 V-0	Male Pin	2.2 A	Brass	-55 °C	125 °C
Harwin Inc. M80-5324242	Header	2	Gold	Polyphenylene Sulfide (PPS) Glass Filled	All	0.218 in	5.55 mm	800 V	Black	3 µm	118.1 µin	Board to Board Cable	Surface Mount Right Angle	29.5 Áin	0.75 Ám	Solder	Shrouded - 4 Wall	0.079 in	2 mm	42	Circular	Keying Slot Mating Flange	0.079 in	2 mm	Tin	UL94 V-0	Male Pin	2.2 A	Brass	-55 °C	125 °C
Harwin Inc. M80-5322605	Header	2	Gold	Polyphenylene Sulfide (PPS) Glass Filled	All	0.22 in	5.6 mm	800 VAC	Black	0.75 µm		Board to Board Cable	Surface Mount Right Angle	29.5 Áin	0.75 Ám	Solder	Shrouded - 4 Wall	0.079 in	2 mm	26	Circular	Keying Slot Mating Flange	0.079 in	2 mm	Gold	UL94 V-0	Male Pin	2.2 A	Brass	-55 °C	125 °C	29.5 µin
Harwin Inc. M80-5321422	Header	2	Gold	Polyphenylene Sulfide (PPS) Glass Filled	All	0.218 in	5.55 mm	800 V	Black	3 µm	118.1 µin	Board to Board Cable	Surface Mount Right Angle	29.5 Áin	0.75 Ám	Solder	Shrouded - 4 Wall	0.079 in	2 mm	14	Circular	Keying Slot Mating Flange	0.079 in	2 mm	Tin-Lead	UL94 V-0	Male Pin	2.2 A	Brass	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 13.68
		10	$ 10.52
		100	$ 8.20
		500	$ 6.98
		1000	$ 6.53
Newark	Each	100	$ 9.80
		250	$ 8.79
		500	$ 8.28
		1000	$ 7.26
		2500	$ 6.91

Description

General part information

M80-532 Series

Connector Header Surface Mount, Right Angle 6 position 0.079" (2.00mm)
