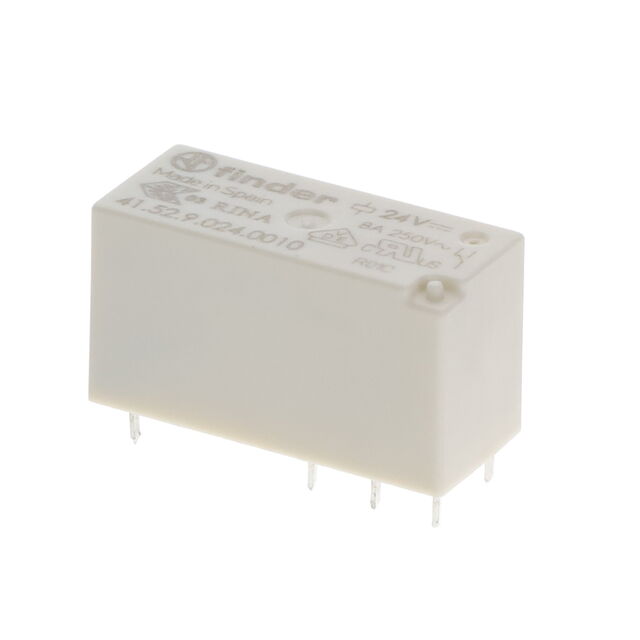

41.52.9.024.0010

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 8A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

41.52.9.024.0010

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 8A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	41.52.9.024.0010

Approval Agency	RINA, EAC, cURus, ENEC, VDE
Coil Current	16.7 mA
Coil Resistance	1440 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	8 A
Load - Max Switching	3200 VA
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	3.6 VDC
Operate Time	8 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	6 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

41.52.9 Series

Part	Relay Type	Load - Max Switching	Must Release Voltage	Release Time	Coil Resistance	Contact Form	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Approval Agency	Contact Material	Must Operate Voltage	Coil Voltage	Operate Time	Coil Current	Switching Voltage [Max]	Termination Style	Mounting Type	Seal Rating
Finder Relays, Inc. 41.52.9.012.0011	General Purpose	3200 VA	1.8 VDC	6 ms	360 Ohms	DPDT (2 Form C)	8 A	85 °C	-40 °C	Non Latching	cURus EAC ENEC RINA VDE	Silver Nickel (AgNi)	8.4 VDC	12 VDC	8 ms	33.3 mA	400 VAC	PC Pin	Through Hole
Finder Relays, Inc. 41.52.9.024.5010	General Purpose	3200 VA	3.6 VDC	6 ms	1440 Ohms	DPDT (2 Form C)	8 A	85 °C	-40 °C	Non Latching	cURus EAC ENEC RINA VDE	Gold (Au) Silver Nickel (AgNi)	16.8 VDC	24 VDC	8 ms	16.7 mA	400 VAC	PC Pin	Through Hole	Sealed - Flux Protection
Finder Relays, Inc. 41.52.9.012.0010	General Purpose	3200 VA	1.8 VDC	6 ms	360 Ohms	DPDT (2 Form C)	8 A	85 °C	-40 °C	Non Latching	cURus EAC ENEC RINA VDE	Silver Nickel (AgNi)	8.4 VDC	12 VDC	8 ms	33.3 mA	400 VAC	PC Pin	Through Hole	Sealed - Flux Protection
Finder Relays, Inc. 41.52.9.024.0010	General Purpose	3200 VA	3.6 VDC	6 ms	1440 Ohms	DPDT (2 Form C)	8 A	85 °C	-40 °C	Non Latching	cURus EAC ENEC RINA VDE	Silver Nickel (AgNi)	16.8 VDC	24 VDC	8 ms	16.7 mA	400 VAC	PC Pin	Through Hole	Sealed - Flux Protection
Finder Relays, Inc. 41.52.9.110.0010	General Purpose	3200 VA	16.5 VDC	6 ms	24.2 kOhms	DPDT (2 Form C)	8 A	85 °C	-40 °C	Non Latching	cURus EAC ENEC RINA VDE	Silver Nickel (AgNi)	77 VDC	110 VDC	8 ms	4.5 mA	400 VAC	PC Pin	Through Hole	Sealed - Flux Protection

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.04
		20	$ 4.73
		40	$ 3.99
		100	$ 3.78
		260	$ 3.36
		500	$ 3.15
		1000	$ 2.94

Description

General part information

41.52.9 Series

General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
