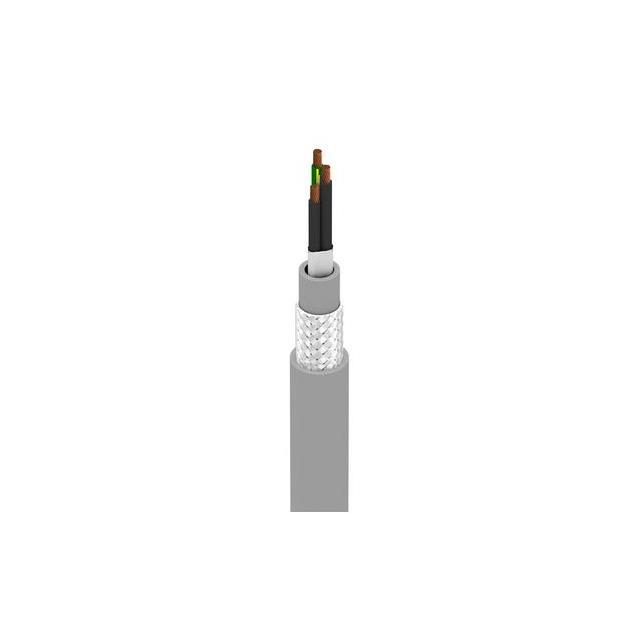

7410WS 0605000

Active

Belden Inc.

CABLE 3COND 18AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	7410WS 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	9.32 mm
Jacket (Insulation) Diameter [diameter]	0.367 "
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Chrome
Number of Conductors	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 20328
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Wire Gauge	18 AWG

Part	Conductor Material	Shield Type	Features	Jacket (Insulation) Material	Jacket Color	Ratings	Wire Gauge	Cable Type	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 7410WS 0605000	Copper Bare	Braid	Oil Resistant UV Resistant	Thermoplastic Elastomer (TPE)	Chrome	UL Style 20328	18 AWG	Multi-Conductor	Copper Tinned	90 °C	-40 °C	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	3	9.32 mm	0.367 "	85 %	16	30 AWG	1.194 mm	0.047 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 3.65

General part information

3 Conductor Multi-Conductor Cable Chrome 18 AWG Braid 5000' (1524.0m)
