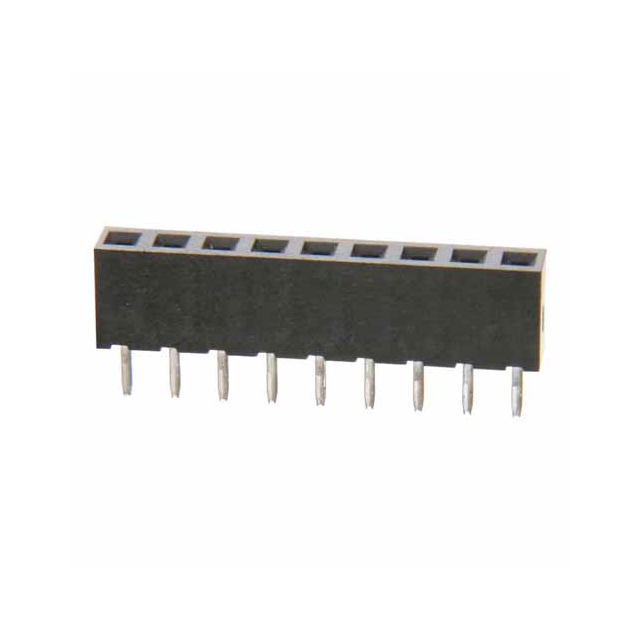

M22-7130742

Active

Harwin Inc.

CONN, RCPT, 7POS, 1ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003 Datasheet +2

M22-7130742

Active

Harwin Inc.

CONN, RCPT, 7POS, 1ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20-003 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-7130742

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.173 in
Insulation Height	4.4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights [z]	5.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	500 VAC

M22-713 Series

Part	Contact Shape	Mated Stacking Heights [z]	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Voltage Rating	Applications	Material Flammability Rating	Mounting Type	Number of Positions Loaded	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Material	Insulation Material	Contact Type	Insulation Height	Insulation Height	Style	Current Rating (Amps)	Contact Finish - Post	Contact Finish - Mating	Connector Type	Termination	Contact Length - Post	Contact Length - Post	Number of Rows	Number of Positions
Harwin Inc. M22-7131642	Square	5.9 mm	0.079 in	2 mm	Black	500 VAC	General Purpose Industrial Telecommunications	UL94 V-0	Through Hole	All	Push-Pull	-40 °C	105 ░C	16	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Female Socket	0.173 in	4.4 mm	Board to Board Cable	2 A	Tin	Gold	Receptacle	Solder	0.094 in	2.4 mm	1
Harwin Inc. M22-7132542	Square	5.9 mm	0.079 in	2 mm	Black	500 VAC	General Purpose Industrial Telecommunications	UL94 V-0	Through Hole	All	Push-Pull	-40 °C	105 ░C		Phosphor Bronze	Liquid Crystal Polymer (LCP)	Female Socket	0.173 in	4.4 mm	Board to Board Cable	2 A	Tin	Gold	Receptacle	Solder	0.094 in	2.4 mm	1
Harwin Inc. M22-7131042	Square	5.9 mm	0.079 in	2 mm	Black	500 VAC	General Purpose Industrial Telecommunications	UL94 V-0	Through Hole	All	Push-Pull	-40 °C	105 ░C		Phosphor Bronze	Liquid Crystal Polymer (LCP)	Female Socket	0.173 in	4.4 mm	Board to Board Cable	2 A	Tin	Gold	Receptacle	Solder	0.094 in	2.4 mm	1	10
Harwin Inc. M22-7130742	Square	5.9 mm	0.079 in	2 mm	Black	500 VAC	General Purpose Industrial Telecommunications	UL94 V-0	Through Hole	All	Push-Pull	-40 °C	105 ░C		Phosphor Bronze	Liquid Crystal Polymer (LCP)	Female Socket	0.173 in	4.4 mm	Board to Board Cable	2 A	Tin	Gold	Receptacle	Solder	0.094 in	2.4 mm	1	7
Harwin Inc. M22-7132042	Square	5.9 mm	0.079 in	2 mm	Black	500 VAC	General Purpose Industrial Telecommunications	UL94 V-0	Through Hole	All	Push-Pull	-40 °C	105 ░C		Phosphor Bronze	Liquid Crystal Polymer (LCP)	Female Socket	0.173 in	4.4 mm	Board to Board Cable	2 A	Tin	Gold	Receptacle	Solder	0.094 in	2.4 mm	1	20
Harwin Inc. M22-7130442	Square	5.9 mm	0.079 in	2 mm	Black	500 VAC	General Purpose Industrial Telecommunications	UL94 V-0	Through Hole	All	Push-Pull	-40 °C	105 ░C		Phosphor Bronze	Liquid Crystal Polymer (LCP)	Female Socket	0.173 in	4.4 mm	Board to Board Cable	2 A	Tin	Gold	Receptacle	Solder	0.094 in	2.4 mm	1	4
Harwin Inc. M22-7130642	Square	5.9 mm	0.079 in	2 mm	Black	500 VAC	General Purpose Industrial Telecommunications	UL94 V-0	Through Hole	All	Push-Pull	-40 °C	105 ░C		Phosphor Bronze	Liquid Crystal Polymer (LCP)	Female Socket	0.173 in	4.4 mm	Board to Board Cable	2 A	Tin	Gold	Receptacle	Solder	0.094 in	2.4 mm	1	6
Harwin Inc. M22-7130342	Square	5.9 mm	0.079 in	2 mm	Black	500 VAC	General Purpose Industrial Telecommunications	UL94 V-0	Through Hole	All	Push-Pull	-40 °C	105 ░C		Phosphor Bronze	Liquid Crystal Polymer (LCP)	Female Socket	0.173 in	4.4 mm	Board to Board Cable	2 A	Tin	Gold	Receptacle	Solder	0.094 in	2.4 mm	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.10
		84	$ 0.86
		504	$ 0.72
Newark	Each	1	$ 1.47
		10	$ 1.23
		100	$ 0.99
		250	$ 0.93
		500	$ 0.89
		1000	$ 0.84
		2500	$ 0.80

Description

General part information

M22-713 Series

7 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

M20-003

Datasheet

M22 Series Spec Sheet

Datasheet

Drawing EN

Datasheet
