11047-16-1-0500-005-1-TS

Active

CnC Tech, LLC

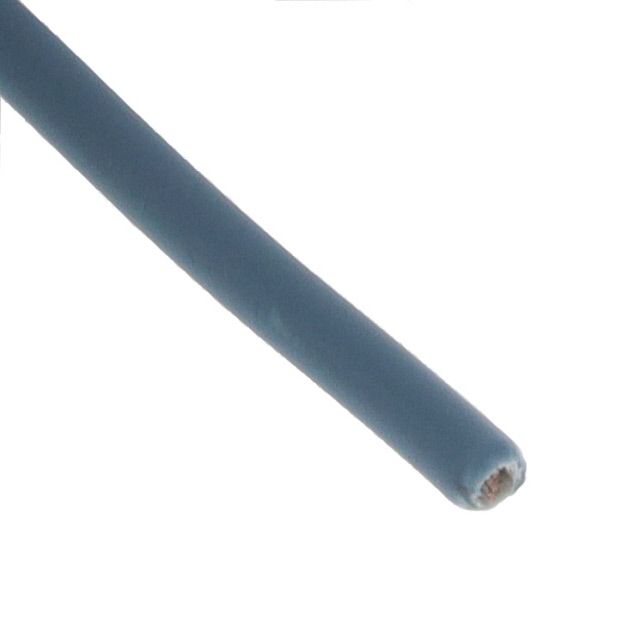

HOOK-UP STRND 16AWG BLUE

Search across all available documentation for this part.

Active

CnC Tech, LLC

HOOK-UP STRND 16AWG BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	11047-16-1-0500-005-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	26
Conductor Strand [diameter]	0.01 in
Jacket (Insulation) Diameter [diameter]	0.114 in
Jacket (Insulation) Diameter [diameter]	2.89 mm
Jacket (Insulation) Material	Polyphenylene Ether (PPE)
Jacket (Insulation) Thickness	0.38 mm
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Blue
Length [x]	500 '
Length [x]	152.4 m
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Ratings	UL Style 11047
Voltage	600 V
Wire Gauge	16 AWG

Part	Jacket (Insulation) Material	Voltage	Jacket Color	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Cable Type	Conductor Strand [custom]	Conductor Strand [diameter]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
CnC Tech, LLC 11047-16-1-0500-005-1-TS	Polyphenylene Ether (PPE)	600 V	Blue	16 AWG	0.114 in	2.89 mm	500 '	152.4 m	105 ░C	-10 °C	UL Style 11047	Hook-Up	26	0.01 in	Copper Tinned	0.38 mm	0.015 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	4000	$ 0.78

General part information

16 AWG Hook-Up Wire 26/0.0100" Blue 600V 500.0' (152.4m)
