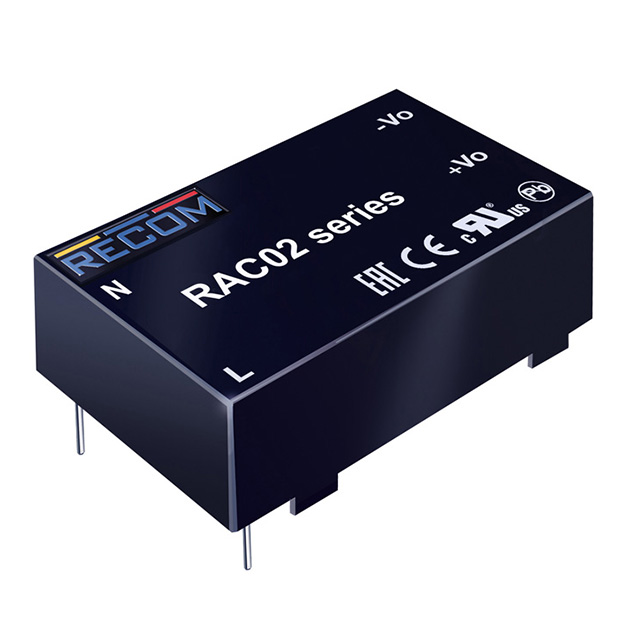

RAC02-09SC
ObsoleteRECOM Power
AC/DC CONVERTER 9V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RAC02-09SC
ObsoleteRECOM Power
AC/DC CONVERTER 9V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RAC02-09SC |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | EN, CE, UL |
| Current - Output (Max) [Max] | 222 mA |
| Efficiency | 74 % |
| Features | SCP |
| Line Regulation | 2 % |
| Load Regulation | 6 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 1.33 " |
| Size / Dimension [x] | 33.7 mm |
| Size / Dimension [y] | 0.87 in |
| Size / Dimension [y] | 22.2 mm |
| Size / Dimension [z] | 0.71 in |
| Size / Dimension [z] | 18 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output 1 | 9 V |
| Weight | 0.055 lb |
| Weight | 24.95 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 16.36 | |
Description
General part information
RAC02-09 Series
Enclosed AC DC Converters 1 Output 9V 222mA 80 ~ 264 VAC Input
