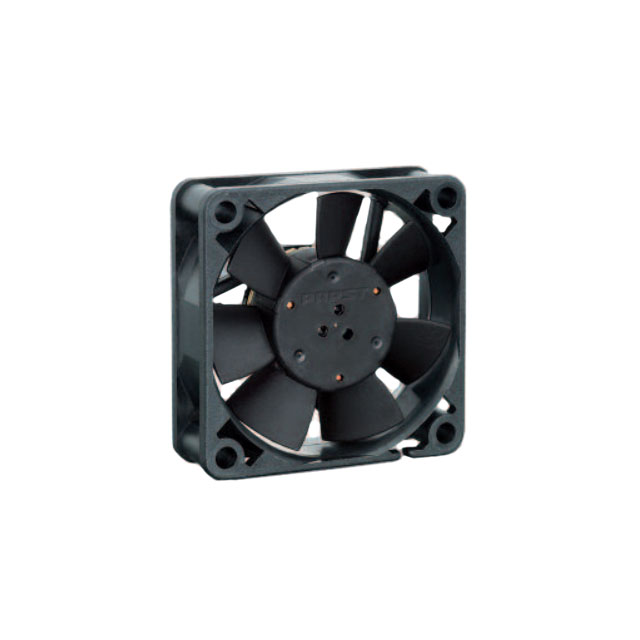

512F/2-531

Active

ebm-papst Inc.

FAN AXIAL 50X15MM 12VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 50X15MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	512F/2-531

Air Flow	0.33 mł/min
Air Flow	11.8 CFM
Bearing Type	Sintec
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	30 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	5000 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Width [x]	15 mm

Part	Fan Type	Bearing Type	Material - Frame	Noise	Width [x]	Material - Blade	Lifetime @ Temp.	Termination	RPM	Features	Voltage - Rated	Air Flow	Air Flow	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Max]	Voltage Range [Min]
ebm-papst Inc. 512F/2-531	Tubeaxial	Sintec	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	30 dB(A)	15 mm	Fiberglass Reinforced Nylon Polyamide (PA)	50000 Hrs	3 Wire Leads	5000 RPM	Speed Sensor (Tach)	12 VDC	0.33 mł/min	11.8 CFM	50 mm	50 mm	-20 °C	70 °C	-20 C	70 °C	13.2 VDC	10.8 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Sintec 11.8 CFM (0.330mł/min) 3 Wire Leads
