TR9KG2400LCPCIMR6B

Active

GlobTek, Inc.

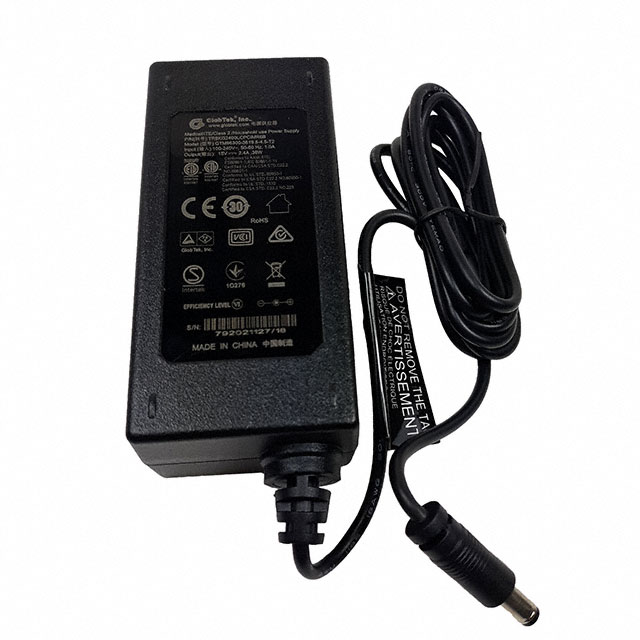

AC/DC DESKTOP ADAPTER 15V 36W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 15V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9KG2400LCPCIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CB, S-Mark, VCCI, LPS, CCC, CE, PSE, UKRSepro, RCM, EAC, ETL
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	2.4 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	105 mm
Size / Dimension [x]	4.13 in
Size / Dimension [y]	50 mm
Size / Dimension [y]	1.97 "
Size / Dimension [z]	1.4 "
Size / Dimension [z]	35.5 mm
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	15 VDC

Part	Input Connector	Voltage - Output	Form	Approval Agency	Polarization	No Load Power Consumption [Max]	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Input Type	Cord Length	Cord Length	Region Utilized	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Current - Output (Max) [Max]	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [x]	Standard Number
GlobTek, Inc. TR9KG2400LCPCIMR6B	IEC 320-C8	15 VDC	Desktop (Class II)	CB CCC CE EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	Positive Center	75 mW	Level VI	105 mm	50 mm	1.4 "	35.5 mm	1.97 "	4.13 in	Cord	60.2 in	1.53 m	International	-20 C	40 °C	90 VAC	264 VAC	Household Appliances ITE (Commercial) Medical	2.4 A	36 W	Barrel Plug	2.5 mm 5.5 mm	11 mm	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	48	$ 14.17

General part information

15V 36 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
