2903070

Active

Phoenix Contact

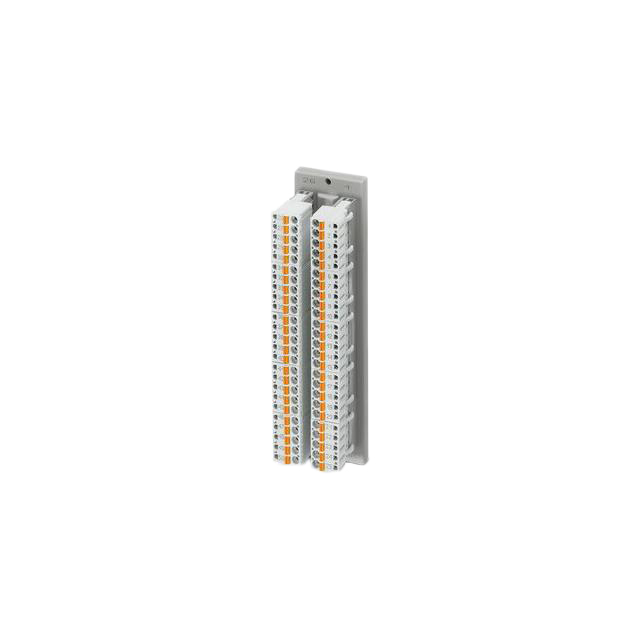

CONN MODULE DB50 FEEDTHROUGH

Search across all available documentation for this part.

Active

Phoenix Contact

CONN MODULE DB50 FEEDTHROUGH

Technical Specifications

Parameters and characteristics for this part

Specification	2903070

Convert From (Adapter End)	Terminal Blocks, Screwless Connection, 50 Pos, 2 Rows
Convert To (Adapter End)	2 Rows, 50 Pos
Convert To (Adapter End)	D-Sub, Female Sockets
Mounting Type	Feed Through, Panel Mount
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	12 AWG

Part	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Convert To (Adapter End)	Convert To (Adapter End)	Convert From (Adapter End)
Phoenix Contact 2291286	30 AWG	12 AWG	Feed Through Panel Mount	2 Rows 50 Pos	D-Sub Male Pins	Terminal Blocks Screw Connection 50 Pos 2 Rows
Phoenix Contact 2287669	30 AWG	12 AWG	Feed Through Panel Mount	2 Rows 50 Pos	D-Sub Female Sockets	Terminal Blocks Screw Connection 50 Pos 2 Rows
Phoenix Contact 2903070	24 AWG	12 AWG	Feed Through Panel Mount	2 Rows 50 Pos	D-Sub Female Sockets	Terminal Blocks Screwless Connection 50 Pos 2 Rows

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Terminal Blocks, Screwless Connection, 50 Pos, 2 Rows To D-Sub, Female Sockets, 50 Pos, 2 Rows
