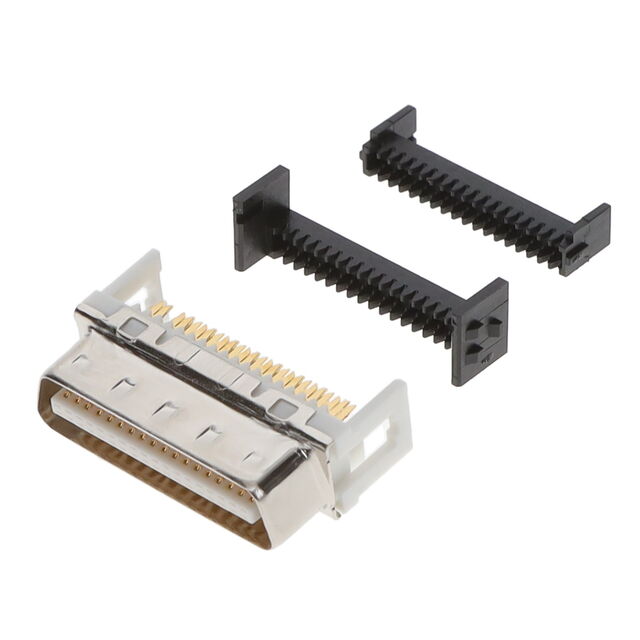

DX30A-36P(50)

Active

Hirose Electric USA, Inc.

HIROSE ORIGINAL 1.27MM PITCH HIGH-DENSITY I/O CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

DX30A-36P(50)

Active

Hirose Electric USA, Inc.

HIROSE ORIGINAL 1.27MM PITCH HIGH-DENSITY I/O CONNECTORS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DX30A-36P(50)

Connector Style	Center Strip Contacts
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	7.87 µin
Contact Finish Thickness	0.2 µm
Flange Feature	Latchblocks, Mating Side (M2.6)
Mounting Type	Free Hanging (In-Line)
Number of Positions	36
Number of Rows	2
Termination	IDC
Type	Miniature High Density (HD)

DX30 Series

Part	Primary Material	Number of Positions	Cable Type	Shielding	Cable Exit	Hardware	Accessory Type	Color	Features	For Use With/Related Products	Tool Type	Contact Finish	Mounting Type	Type	Connector Style	Termination	Number of Rows	Flange Feature	Connector Type	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. DX30M-20-CV	Metal	20	Round	Shielded	180 °	Strain Relief	Two Piece Backshell and Cover	Beige	Latch Lock
Hirose Electric USA, Inc. DX30M-20-CV(13)
Hirose Electric USA, Inc. DX30AM-HPT1-100										D-Sub Connectors	Insertion Tool
Hirose Electric USA, Inc. DX30A-36S(50)		36										Gold	Free Hanging (In-Line)	Miniature High Density (HD)	Outer Shroud Contacts	IDC	2	Latchblocks Mating Side (M2.6)	Receptacle	7.87 µin	0.2 µm
Hirose Electric USA, Inc. DX30A-50S-LNA(55)		50										Gold	Free Hanging (In-Line)	Miniature High Density (HD)	Outer Shroud Contacts	IDC	2	Latchblocks Mating Side Female Screwlock (M2.6)	Receptacle	7.87 µin	0.2 µm
Hirose Electric USA, Inc. DX30AM-14P		14										Gold	Free Hanging (In-Line)	Miniature High Density (HD)	Center Strip Contacts	IDC	2		Plug
Hirose Electric USA, Inc. DX30AM-GPT1							Guide Plate Locator
Hirose Electric USA, Inc. DX30A-20P(57)		20										Gold	Free Hanging (In-Line)	Miniature High Density (HD)	Center Strip Contacts	IDC	2	Latchblocks Mating Side (M2.6)	Plug	30 Áin	0.76 Ám
Hirose Electric USA, Inc. DX30A-36P(50)		36										Gold	Free Hanging (In-Line)	Miniature High Density (HD)	Center Strip Contacts	IDC	2	Latchblocks Mating Side (M2.6)	Plug	7.87 µin	0.2 µm
Hirose Electric USA, Inc. DX30M-20-CV(11)	Metal	20	Round	Shielded	180 °	Strain Relief	Two Piece Backshell and Cover	Beige	Latch Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.76
		10	$ 9.68
		25	$ 9.12
		50	$ 8.88
		100	$ 8.65
		250	$ 7.72
		450	$ 7.25
		950	$ 6.41
Newark	Each	1	$ 10.86
		250	$ 9.60

Description

General part information

DX30 Series

36 Position Plug Connector Miniature High Density (HD) Free Hanging (In-Line) IDC
